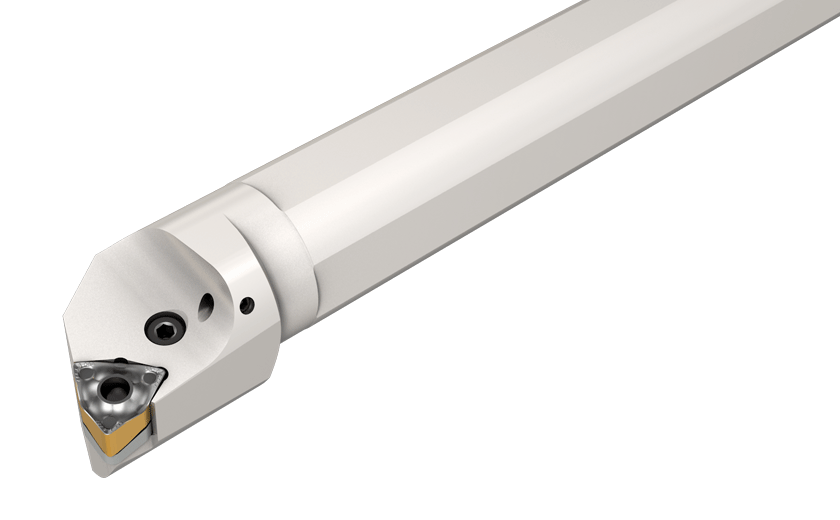

A-PWLNR 16-4X-Lever lock boring bars with coolant holes carrying HELITURN LD WNMX or WNMG trigon inserts, for heavy machining applications.

Dostępność: duża ilość

Cena brutto: 1 261,62 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1261.62

Cena netto: 1 025,71 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 401,80 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3602989

A-PWLNR 16-4X

Podstawowe informacje
FamilyName	A-PWLNR/L-X/G
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3602989
ProductName	A-PWLNR 16-4X
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Lever lock boring bars with coolant holes carrying HELITURN LD WNMX or WNMG trigon inserts, for heavy machining applications.
FamilyShortDesc	Lever Lock Boring Bars with Coolant Holes Carrying HELITURN LD WNMX or WNMG Trigon Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3602989
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Int. 80° Trigon 95° Approach \|
APP1Name	Int. 80° Trigon 95° Approach
ItemRemark	Supplied with TWX 4 seat for WNMX 45. inserts and TWN 443 seat for WNMG 43. inserts
Tool Type	Internal Indexble -Turn Tool
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	2.2597
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3602989
Connection Diameter Machine Side (DCONMS)	1"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Direction (HAND)	Right Hand
Functional Width (WF)	0.65"
Master Insert Identification (MIID)	WNMX 45. WNMG 43.
Minimum Bore Diameter (DMIN)	1.97"
Overall Length (OAL)	12"
Rake Angle Axial (GAMP)	-7 Degrees
Rake Angle Radial (GAMF)	-14 Degrees
Reduced Body Diameter Length (LDRED)	2"
Shank Height (H)	0.905"
