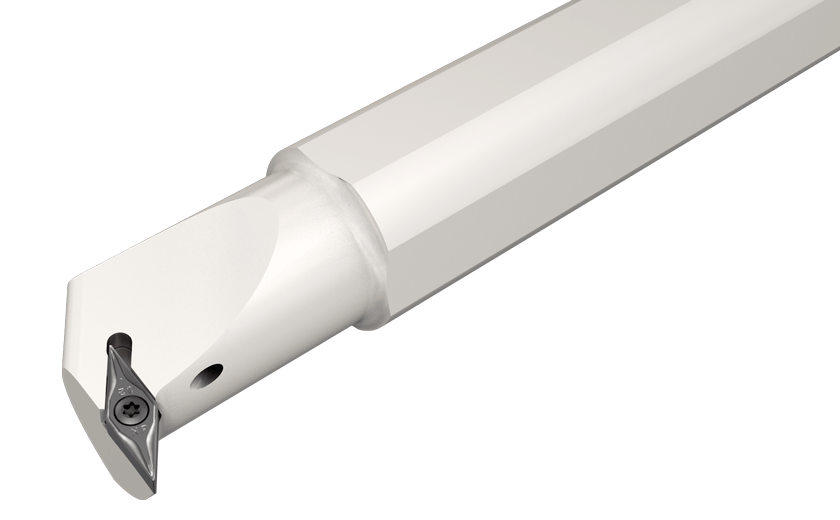

A-SVUNL 20-2.5-Boring bars with internal coolant holes carrying 35° negative rhombic inserts.

Dostępność: duża ilość

Cena brutto: 2 082,88 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2082.88

Cena netto: 1 693,40 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 320,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3606583

A-SVUNL 20-2.5

Podstawowe informacje
FamilyName	A-SVUNR/L
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3606583
ProductName	A-SVUNL 20-2.5
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Boring bars with internal coolant holes carrying 35° negative rhombic inserts.
FamilyShortDesc	Boring Bars with Internal Coolant Holes Carrying 35° Negative Rhombic Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3606583
Remarks	For inserts with corner radius of .031 and larger, seat needs to be modified to ensure clearance.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Int. 35° Diamond 93° Approach \|
APP1Name	Int. 35° Diamond 93° Approach
ItemRemark
Tool Type	Internal Indexble -Turn Tool
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.0661
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3606583
Connection Diameter Machine Side (DCONMS)	1-1/4"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Direction (HAND)	Left Hand
Functional Width (WF)	0.91"
Master Insert Identification (MIID)	VNMG 2.5..
Minimum Bore Diameter (DMIN)	1.46"
Overall Length (OAL)	10"
Rake Angle Axial (GAMP)	-6 Degrees
Rake Angle Radial (GAMF)	-14 Degrees
Reduced Body Diameter Length (LDRED)	1.97"
Shank Height (H)	1.142"
