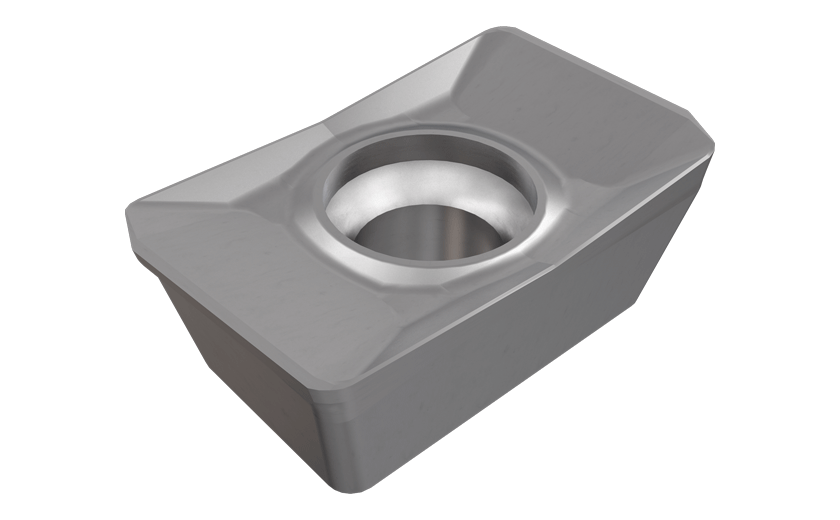

ADKT 1505PD-W IC928-Wiper HELIMILL insert for high surface finish.

Dostępność: duża ilość

Cena brutto: 89,40 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

89.40

Cena netto: 72,68 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 99,33 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 5602441

ADKT 1505PD-W IC928

Podstawowe informacje
FamilyName	ADKT 1505PD-W
ToolType	Insert
Unit	I
PackSize	10
product_code	ISC5602441
ProductName	ADKT 1505PD-W IC928
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Wiper HELIMILL insert for high surface finish.
FamilyShortDesc	Wiper Insert for High Surface Finish
Link	https://www.Iscar.com/ecat/e.asp?cat=5602441
Remarks	Must be used together with ADKT 1505PDR inserts.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \|
APP1Name	Facing
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Single sided Inserts
Point Shape
Measurement Type	Inch
Applicable Material	\| Steel \| Stainless Steel \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0183
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	5602441
Grade	IC928
Corner Radius (RE)	0.0394"
Cutting Edge Effective Length (LE)	0.576"
Depth of Cut Maximum (APMX)	0.576"
Insert Length (INSL)	0.642"
Insert Thickness (S)	0.22"
Insert Width (W1)	0.377"
Maximum Feed per Tooth (fz(max))	0.0118 "/tooth
Minimum Feed per Tooth (fz(min))	0.0059 "/tooth
Number of Cutting Edges	2
