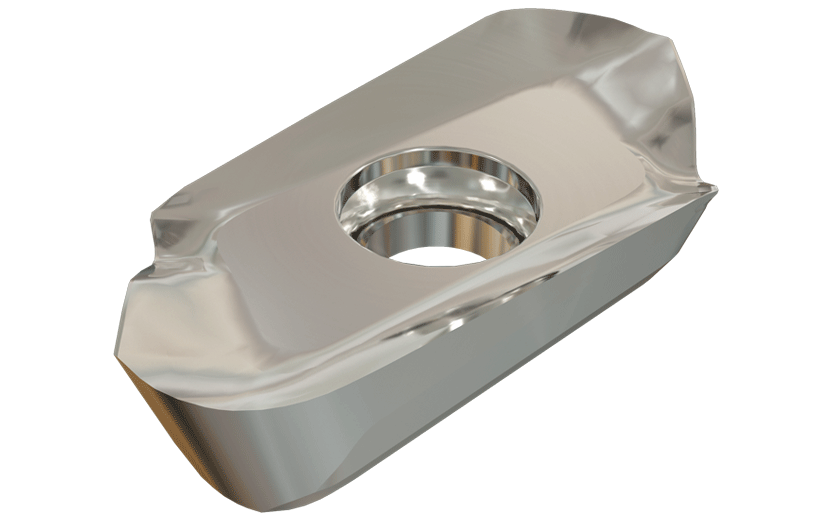

APCR 220605-HM IC28-HELIALU super positive inserts with a polished rake for machining aluminum.

Dostępność: duża ilość

Cena brutto: 160,99 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

160.99

Cena netto: 130,89 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 178,88 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 5601133

APCR 220605-HM IC28

Podstawowe informacje
FamilyName	APCR 2206..-HM
ToolType	Insert
Unit	I
PackSize	10
product_code	ISC5601133
ProductName	APCR 220605-HM IC28
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	HELIALU super positive inserts with a polished rake for machining aluminum.
FamilyShortDesc	Super Positive Inserts with a Polished Rake, for Machining Aluminum
Link	https://www.Iscar.com/ecat/e.asp?cat=5601133
Remarks	Insert with corner radii larger than .031 should be used only on the faceof the cutter.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Plunging & Recessing \| Rampdown \| Shouldering \| Slotting \|
APP1Name	Facing
APP2Name	Plunging & Recessing
APP3Name	Rampdown
APP4Name	Shouldering
APP5Name	Slotting
ItemRemark
Coating	Uncoated
Cutting Edge Material	Carbide
Tool Type	Single sided Inserts
Point Shape
Measurement Type	Inch
Applicable Material	\| Aluminum / Non-Ferrous Materials \|
Thread Standard
Package Weight	0.0428
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	5601133
Grade	IC28
Corner Radius (RE)	0.0197"
Cutting Edge Effective Length (LE)	0.827"
Depth of Cut Maximum (APMX)	0.827"
Insert Length (INSL)	1.169"
Insert Thickness (S)	0.236"
Insert Width (W1)	0.547"
Maximum Feed per Tooth (fz(max))	0.0118 "/tooth
Minimum Feed per Tooth (fz(min))	0.0059 "/tooth
Number of Cutting Edges	2
Wiper Edge Length (BS)	0.063"
