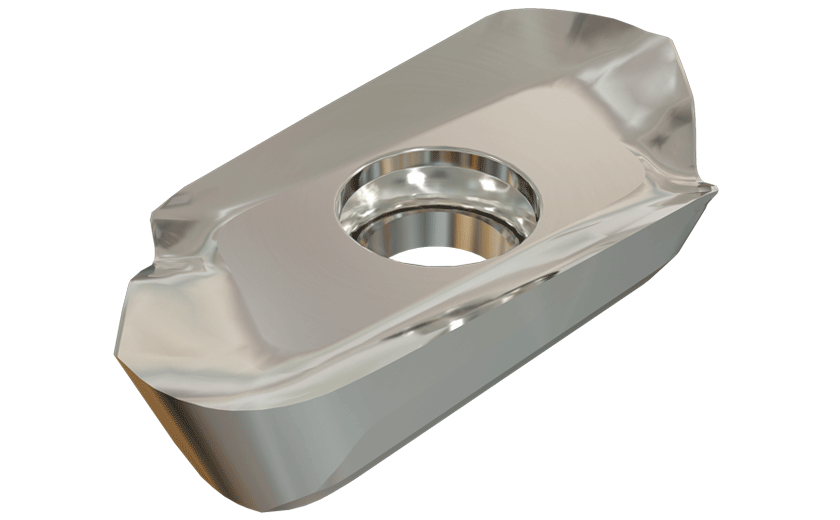

APCR 220664-HM IC28-HELIALU super positive inserts with a polished rake for machining aluminum.

Dostępność: duża ilość

Cena brutto: 160,99 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

160.99

Cena netto: 130,89 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 178,88 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 5601132

APCR 220664-HM IC28

Podstawowe informacje
FamilyName	APCR 2206..-HM
ToolType	Insert
Unit	I
PackSize	10
product_code	ISC5601132
ProductName	APCR 220664-HM IC28
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	HELIALU super positive inserts with a polished rake for machining aluminum.
FamilyShortDesc	Super Positive Inserts with a Polished Rake, for Machining Aluminum
Link	https://www.Iscar.com/ecat/e.asp?cat=5601132
Remarks	Insert with corner radii larger than .031 should be used only on the faceof the cutter.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Plunging & Recessing \| Rampdown \| Shouldering \| Slotting \|
APP1Name	Facing
APP2Name	Plunging & Recessing
APP3Name	Rampdown
APP4Name	Shouldering
APP5Name	Slotting
ItemRemark
Coating	Uncoated
Cutting Edge Material	Carbide
Tool Type	Single sided Inserts
Point Shape
Measurement Type	Inch
Applicable Material	\| Aluminum / Non-Ferrous Materials \|
Thread Standard
Package Weight	0.0401
Style
MSDS	07999
LocalField1	21
Body Material	Carbide
ManufacturerNo	5601132
Grade	IC28
Corner Radius (RE)	1/4"
Cutting Edge Effective Length (LE)	0.827"
Depth of Cut Maximum (APMX)	0.827"
Insert Length (INSL)	1.035"
Insert Thickness (S)	0.236"
Insert Width (W1)	0.547"
Maximum Feed per Tooth (fz(max))	0.0118 "/tooth
Minimum Feed per Tooth (fz(min))	0.0059 "/tooth
Number of Cutting Edges	2
Wiper Edge Length (BS)	0.039"
