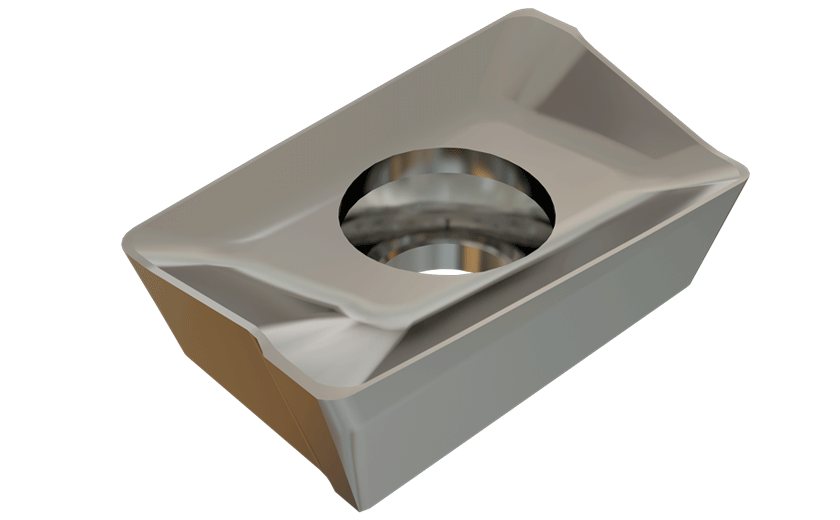

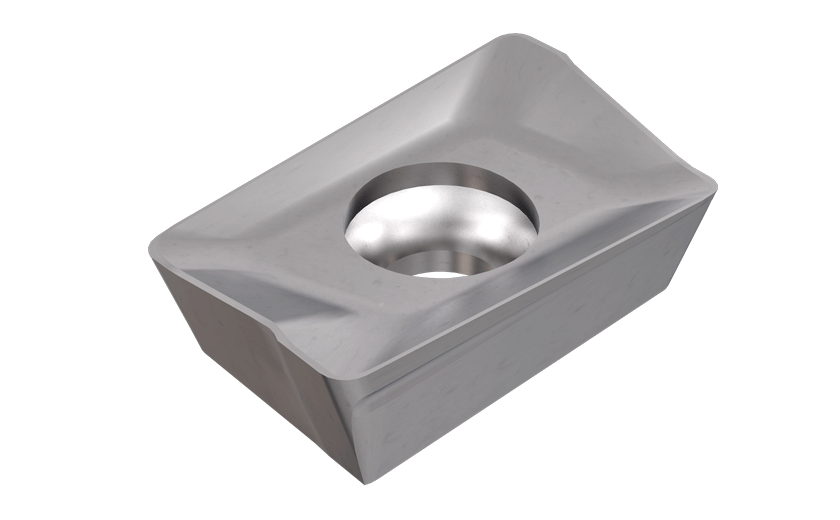

APCT 1003PDR-HM IC250-HELIMILL inserts with 2 helical precision ground cutting edges. Used for high accuracy finishing.

Dostępność: duża ilość

Cena brutto: 86,69 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

86.69

Cena netto: 70,48 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 96,32 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 5600814

APCT 1003PDR-HM IC250

Podstawowe informacje
FamilyName	APCT 1003PDR-HM
ToolType	Insert
Unit	I
PackSize	10
product_code	ISC5600814
ProductName	APCT 1003PDR-HM IC250
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	HELIMILL inserts with 2 helical precision ground cutting edges. Used for high accuracy finishing.
FamilyShortDesc	Inserts with 2 Helical Precision Ground Cutting Edges for High Accuracy Finishing
Link	https://www.Iscar.com/ecat/e.asp?cat=5600814
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Countersinking \| Drill Mill \| Facing \| Plunging & Recessing \| Rampdown \| Shouldering \| Slanted Shoulder & Chamfer \| Slotting \|
APP1Name	Countersinking
APP2Name	Drill Mill
APP3Name	Facing
APP4Name	Plunging & Recessing
APP5Name	Rampdown
APP6Name	Shouldering
APP7Name	Slanted Shoulder & Chamfer
APP8Name	Slotting
ItemRemark
Coating	TiCN+TiN
Cutting Edge Material	Carbide
Tool Type	Single sided Inserts
Point Shape
Measurement Type	Inch
Applicable Material	\| Steel \| Stainless Steel \|
Thread Standard
Package Weight	0.0071
Style
MSDS	07999
LocalField1	21
Body Material	Carbide
ManufacturerNo	5600814
Grade	IC250
Corner Radius (RE)	0.0197"
Cutting Edge Effective Length (LE)	0.396"
Depth of Cut Maximum (APMX)	0.386"
Figure	2
Insert Length (INSL)	0.431"
Insert Thickness (S)	0.138"
Insert Width (W1)	0.264"
Maximum Feed per Tooth (fz(max))	0.0059 "/tooth
Minimum Feed per Tooth (fz(min))	0.0027 "/tooth
Number of Cutting Edges	2
