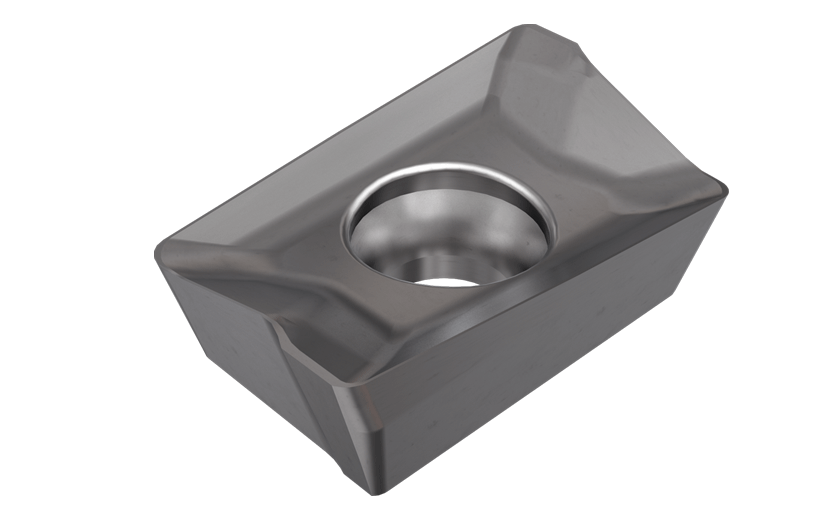

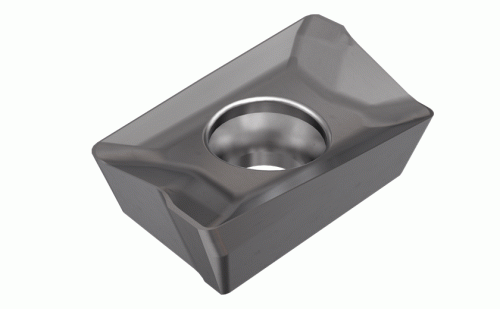

APKR 100308PDR-HP IC882-High positive inserts for machining stainless steel and high temperature alloys

Dostępność: duża ilość

Cena brutto: 83,21 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

83.21

Cena netto: 67,65 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 92,45 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3468163

APKR 100308PDR-HP IC882

Podstawowe informacje
FamilyName	APKR 1003PDR
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3468163
ProductName	APKR 100308PDR-HP IC882
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	High positive inserts for machining stainless steel and high temperature alloys
FamilyShortDesc	High Positive Inserts for Machining Stainless Steel and High Temperature Alloys
Link	https://www.Iscar.com/ecat/e.asp?cat=3468163
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Countersinking \| Drill Mill \| Facing \| Plunging & Recessing \| Rampdown \| Shouldering \| Slanted Shoulder & Chamfer \| Slotting \|
APP1Name	Countersinking
APP2Name	Drill Mill
APP3Name	Facing
APP4Name	Plunging & Recessing
APP5Name	Rampdown
APP6Name	Shouldering
APP7Name	Slanted Shoulder & Chamfer
APP8Name	Slotting
ItemRemark
Coating	AlTiN+TiAlSiN+TiSiN
Cutting Edge Material	Carbide
Tool Type	Mill AL, HTA Geometric Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Stainless Steel \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0035
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3468163
Grade	IC882
Corner Radius (RE)	0.8 mm
Cutting Edge Effective Length (LE)	10.3 mm
Depth of Cut Maximum (APMX)	9.8 mm
Insert Length (INSL)	11.5 mm
Insert Thickness (S)	3.8 mm
Insert Width (W1)	6.7 mm
Maximum Feed per Tooth (fz(max))	0.15 mm/tooth
Minimum Feed per Tooth (fz(min))	0.07 mm/tooth
Number of Cutting Edges	2
