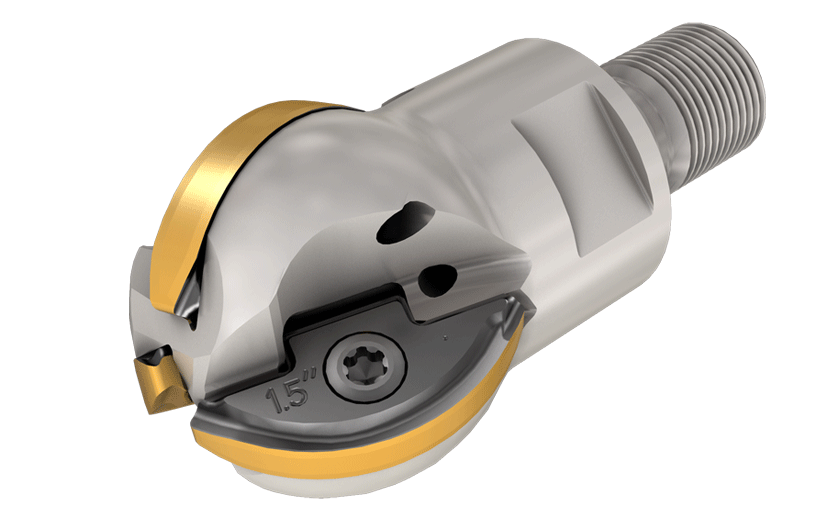

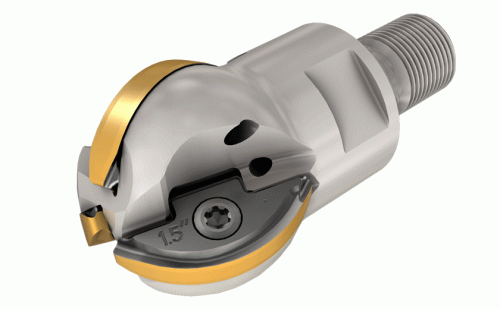

BLP D32/1.25-M12-Three flute fully effective 240° ball nose endmills with FLEXFIT threaded adaptation, carrying double-sided inserts. Designed for roughing, semi finishing and finishing at high feed rates.
Dostępność:
duża ilość
Cena brutto:
1 602,18 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
1 302,59 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
1 780,20 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
3393630
Opis
BLP D32/1.25-M12
| Podstawowe informacje | |
|---|---|
| FamilyName | BLP-M |
| ToolType | Tool |
| Unit | M |
| PackSize | 1 |
| product_code | ISC3393630 |
| ProductName | BLP D32/1.25-M12 |
| COO | Israel |
| UOM | EA |
| UNSPSC | 23242106 |
| FamilyDesc | Three flute fully effective 240° ball nose endmills with FLEXFIT threaded adaptation, carrying double-sided inserts. Designed for roughing, semi finishing and finishing at high feed rates. |
| FamilyShortDesc | Three Flute Fully Effective 240° Ball Nose Endmills with FLEXFIT Threaded Adaptation |
| Link | https://www.Iscar.com/ecat/e.asp?cat=3393630 |
| Remarks | For adaptation, click on More Info When mounting items with FLEXFIT threaded adaptation, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | |
| APP1Name | Drill Mill |
| APP2Name | Helical Interpolation |
| APP3Name | Plunging & Recessing |
| APP4Name | Profiling |
| APP5Name | Rampdown |
| ItemRemark | |
| Tool Type | Ball nose endmills |
| Point Shape | |
| Measurement Type | Metric |
| Thread Standard | |
| Package Weight | 0.1890 |
| Style | |
| MSDS | 07995 |
| LocalField1 | 2 |
| Body Material | Steel |
| ManufacturerNo | 3393630 |
| Connection Code Machine Side (CCMS) | FLEXFIT |
| Connection Diameter Machine Side (DCONMS) | 23 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | M12 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Corner Radius (RE) | 16 mm |
| Cutting Diameter (DC) | 32 mm |
| Cutting Diameter (DC/DCX) | 32 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 3 |
| Depth of Cut Maximum (APMX) | 24 mm |
| Drive Size (DRVS) | 17 mm |
| Functional Length (LF) | 40 mm |
| Master Insert Identification (MIID) | BLR D320-MFW |
| Overall Length (OAL) | 62 mm |
