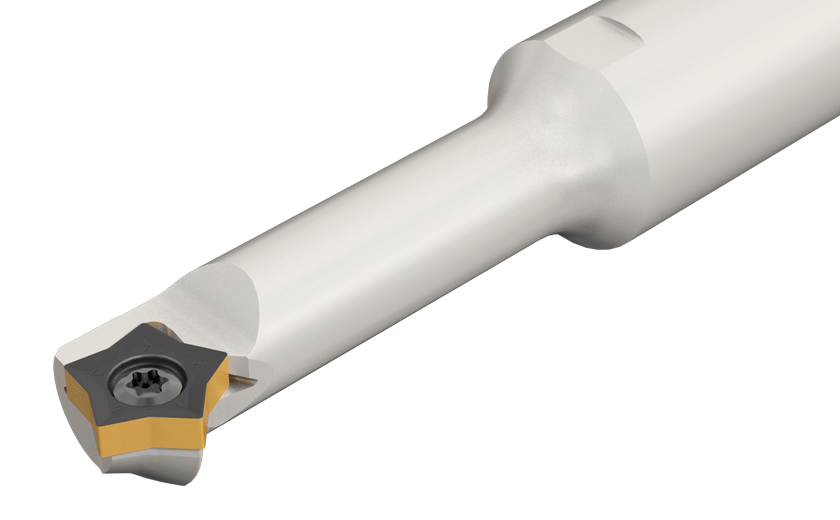

CH45-.39-1.2-1-C.50-PN06-Upper and bottom chamfering endmills carrying pentagonal inserts with 5 front and 5 back cutting edges.

Dostępność: duża ilość

Cena brutto: 1 056,51 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1056.51

Cena netto: 858,95 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 173,90 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3316310

CH45-.39-1.2-1-C.50-PN06

Podstawowe informacje
FamilyName	CH45-PN06
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3316310
ProductName	CH45-.39-1.2-1-C.50-PN06
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Upper and bottom chamfering endmills carrying pentagonal inserts with 5 front and 5 back cutting edges.
FamilyShortDesc	Upper and Bottom Chamfering Endmills Carrying Pentagonal Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3316310
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Chamfering & Bottom Deburring \| Countersinking \| Slanted Shoulder & Chamfer \|
APP1Name	Chamfering & Bottom Deburring
APP2Name	Countersinking
APP3Name	Slanted Shoulder & Chamfer
ItemRemark
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.2822
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3316310
Connection Diameter Machine Side (DCONMS)	1/2"
Coolant Supply Property (CSP)	External
Cutting Diameter (DC)	0.26"
Cutting Diameter (DC/DCX)	0.458"
Cutting Diameter Maximum (DCX)	0.458"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	1
Depth of Cut Maximum (APMX)	0.059"
Master Insert Identification (MIID)	PNMT 0602
Overall Length (OAL)	4"
Shank Type	Round
Tool Cutting Edge Angle (KAPR)	45 Degrees
Usable Length (LU)	1.157"
