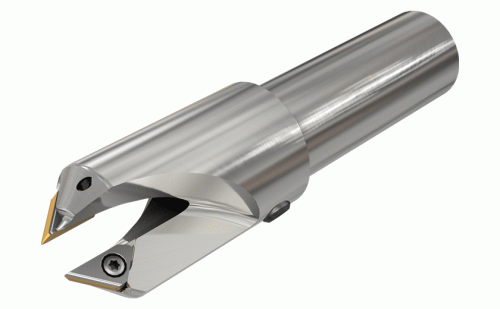

CHAMRING 0748-W1.25-09-Drill Holders used with UNISUMOCHAM or UNICHAMDRILL drills for drilling and chamfering in one operation

Dostępność: duża ilość

Cena brutto: 1 582,83 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1582.83

Cena netto: 1 286,85 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 758,70 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3201292

CHAMRING 0748-W1.25-09

Podstawowe informacje
FamilyName	CHAMRING
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3201292
ProductName	CHAMRING 0748-W1.25-09
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Drill Holders used with UNISUMOCHAM or UNICHAMDRILL drills for drilling and chamfering in one operation
FamilyShortDesc	Drill Holders for Drilling and Chamfering in One Operation
Link	https://www.Iscar.com/ecat/e.asp?cat=3201292
Remarks	For each SDLmin SDLmax pair, click on More Info in order to see which drill they refer to *SDLmin & SDLmax dimensions are based on the 45° chamfering insert It is recommended to apply external coolant on the chamfering inserts. Reduce the recommended feed and speed of the drill being used by 50% when machining maximum chamfer size Chamfering angle (STA) depends on the chamfering insert being used
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Chamfering \| Drilling \|
APP1Name	Chamfering
APP2Name	Drilling
ItemRemark
Tool Type	Chamfering drills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	1.7946
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3201292
Connection Diameter Machine Side (DCONMS)	1-1/4"
Cutting Diameter Maximum (DCX)	0.783"
Cutting Diameter Minimum (DCN)	0.748"
Master Insert Identification (MIID)	XCGT 09...
Shank Length (LS)	2.36"
Shank Size (SS)	1-1/4"
