CoroTurn® 107, wytaczak A10K-SDQCR07 ID:5727575 Sandvik
Dostępność:
duża ilość
Cena brutto:
846,24 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
688,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
778,59 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5727575
Opis

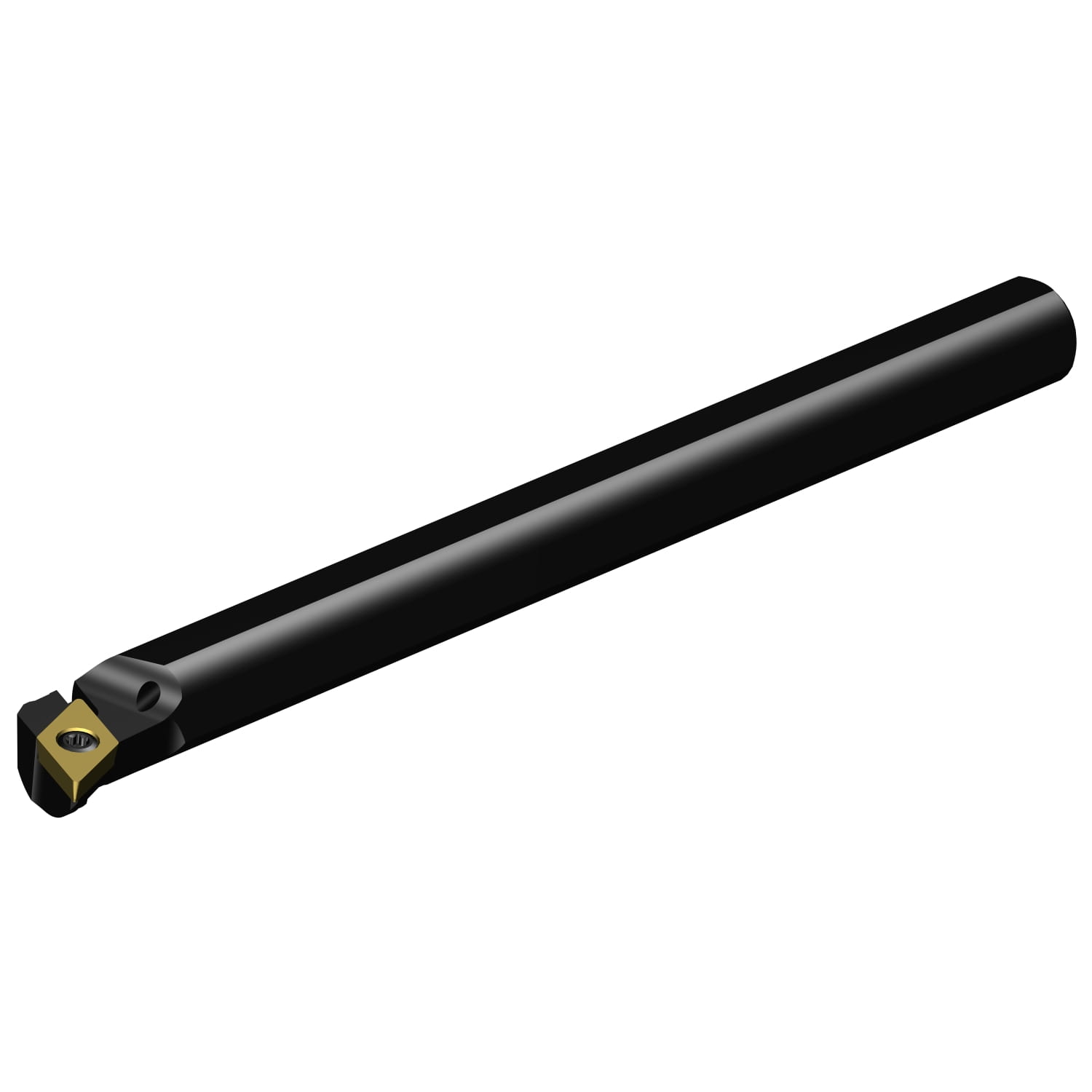

CoroTurn® 107, wytaczak
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, wytaczak |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | A..SDQCR/L |
| Rodzina produktów | Carriers for ISO Inserts |
| Country Of Origin | US |

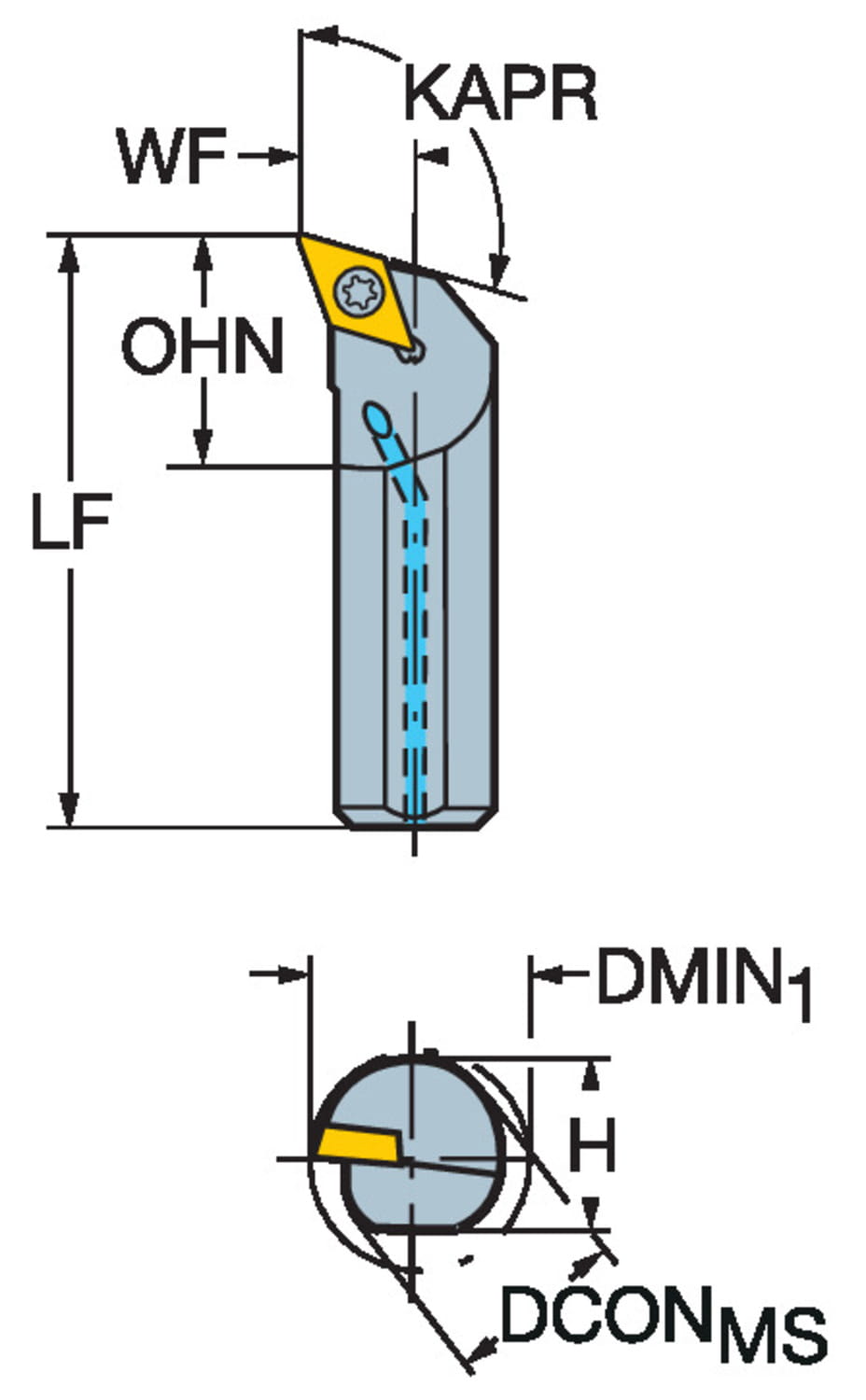

| Wymiary | |
| Dconms Connection Diameter | 0.393701 inch |
| Dconms Connection Diameter | 10 mm |
| Dmin1 Minimum Bore Diameter | 0.511811 inch |
| Dmin1 Minimum Bore Diameter | 13 mm |
| H Shank Height | 0.354331 inch |
| H Shank Height | 9 mm |
| Lf Functional Length | 4.92126 inch |
| Lf Functional Length | 125 mm |
| Waga | 0.186291 lb |
| Waga | 84.5 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank w/ 3 flats -metric: 10 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | DCMT 070204 |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Kapr Tool Cutting Edge Angle | 107.5 deg |
| Ohx Maximum Overhang | 1.5748 inch |
| Ohx Maximum Overhang | 40 mm |
| Psir Tool Lead Angle | -17.5 deg |

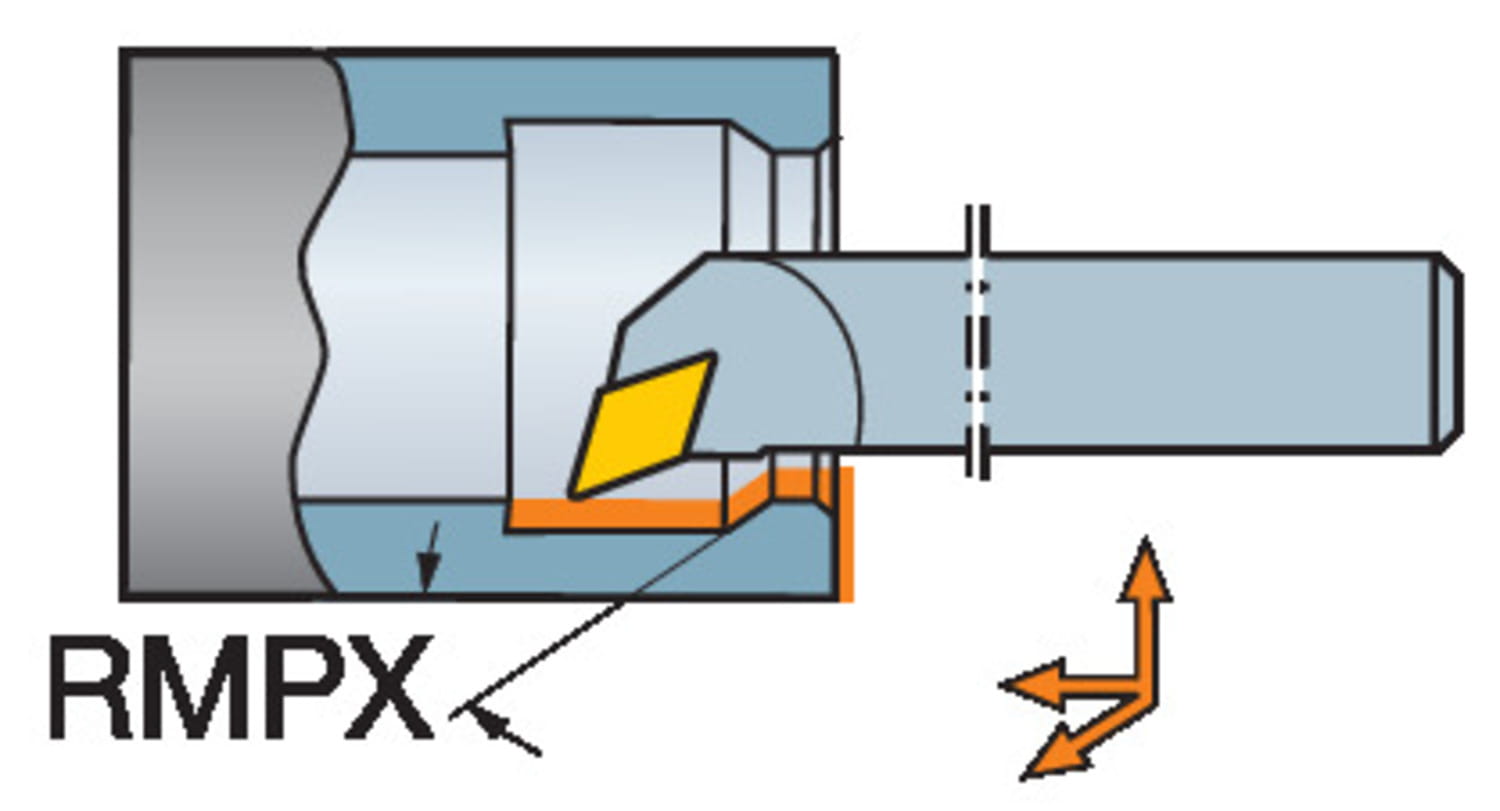

| Rmpx Maximum Ramping Angle | 17 deg |
| Inne parametry | |
| Ean Number | 12166416 |
