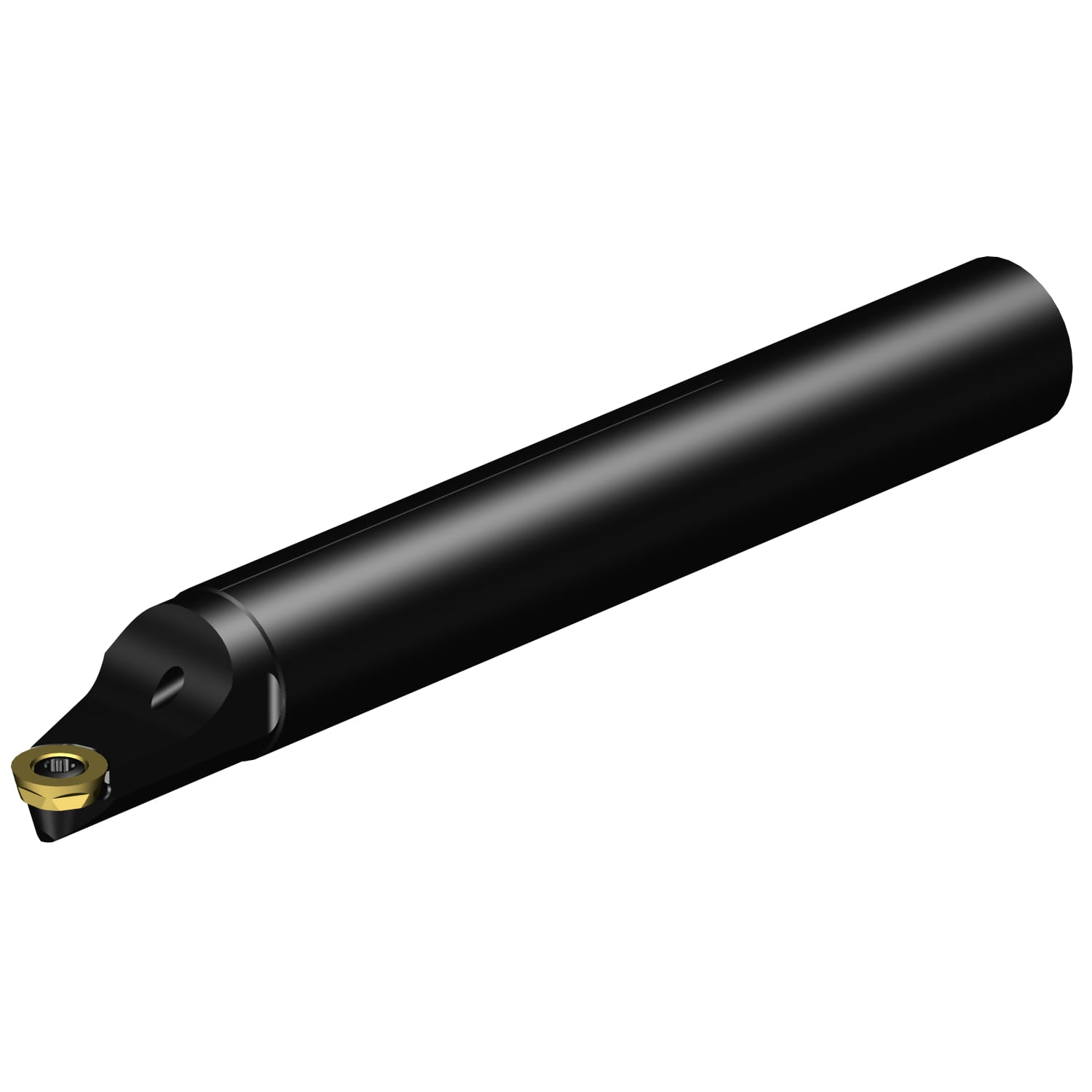

CoroTurn® 107, wytaczak A12M-SRXDR10-R ID:5721422 Sandvik
Dostępność:
duża ilość
Cena brutto:
1 036,89 zł
zawiera 23% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
843,00 zł
bez 23% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
954,48 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
5721422
Opis
CoroTurn® 107, wytaczak
| Podstawowe informacje | |
|---|---|
| Product Description - Pl-Pl | CoroTurn® 107, wytaczak |
| Rodzina produktów | 1053 |
| Product Subfamily Code (Tsyc) | A..SRXDR/L-R (INCH) |
| Rodzina produktów | Carriers for ISO Inserts |
| Country Of Origin | IN |

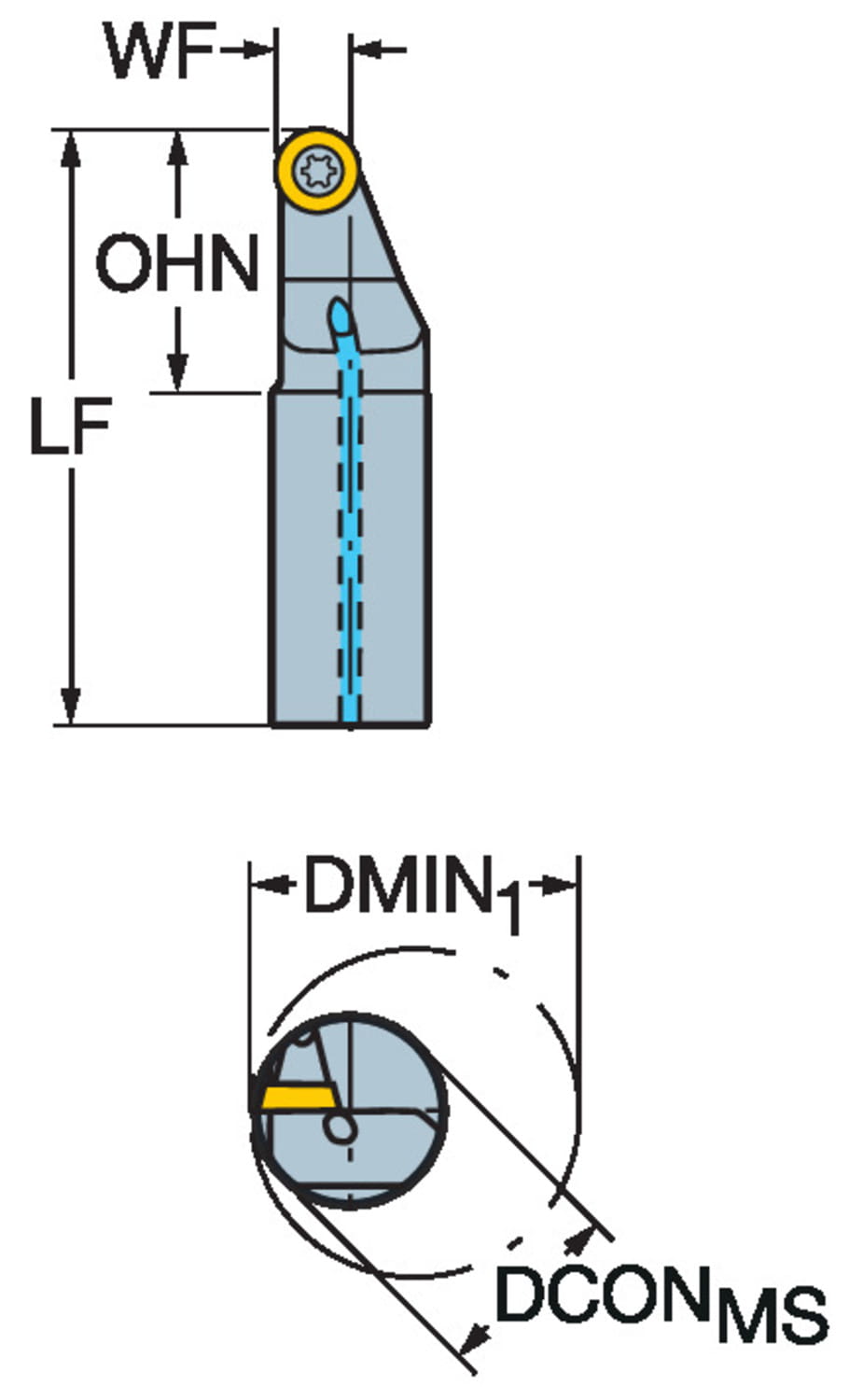

| Wymiary | |
| Dconms Connection Diameter | 0.75 inch |
| Dconms Connection Diameter | 19.05 mm |
| Dmin1 Minimum Bore Diameter | 0.748031 inch |
| Dmin1 Minimum Bore Diameter | 19 mm |
| Lf Functional Length | 5.90551 inch |
| Lf Functional Length | 150 mm |
| Waga | 0.588635 lb |
| Waga | 267 g |
| Parametry techniczne | |
| Adintms Adaptive Interface Machine Direction | Cylindrical shank without clamping features -inch: 3/4 |
| Bams Machine Side Body Angle | 0 deg |
| Baws Workpiece Side Body Angle | 0 deg |
| Bmc Body Material Code | Steel |
| Cnsc Coolant Entry Style Code | 1: axial concentric entry |
| Cutint Master Part 2 Of Cutting Item Interface Identifiers | CoroMill 300 -size 1032 (R300-1032) |
| Cxsc Coolant Exit Style Code | 3: axial inclined exit |
| Dpc Damping Property | no |
| Hand Hand | R |
| Locap Location Aid Property | yes |

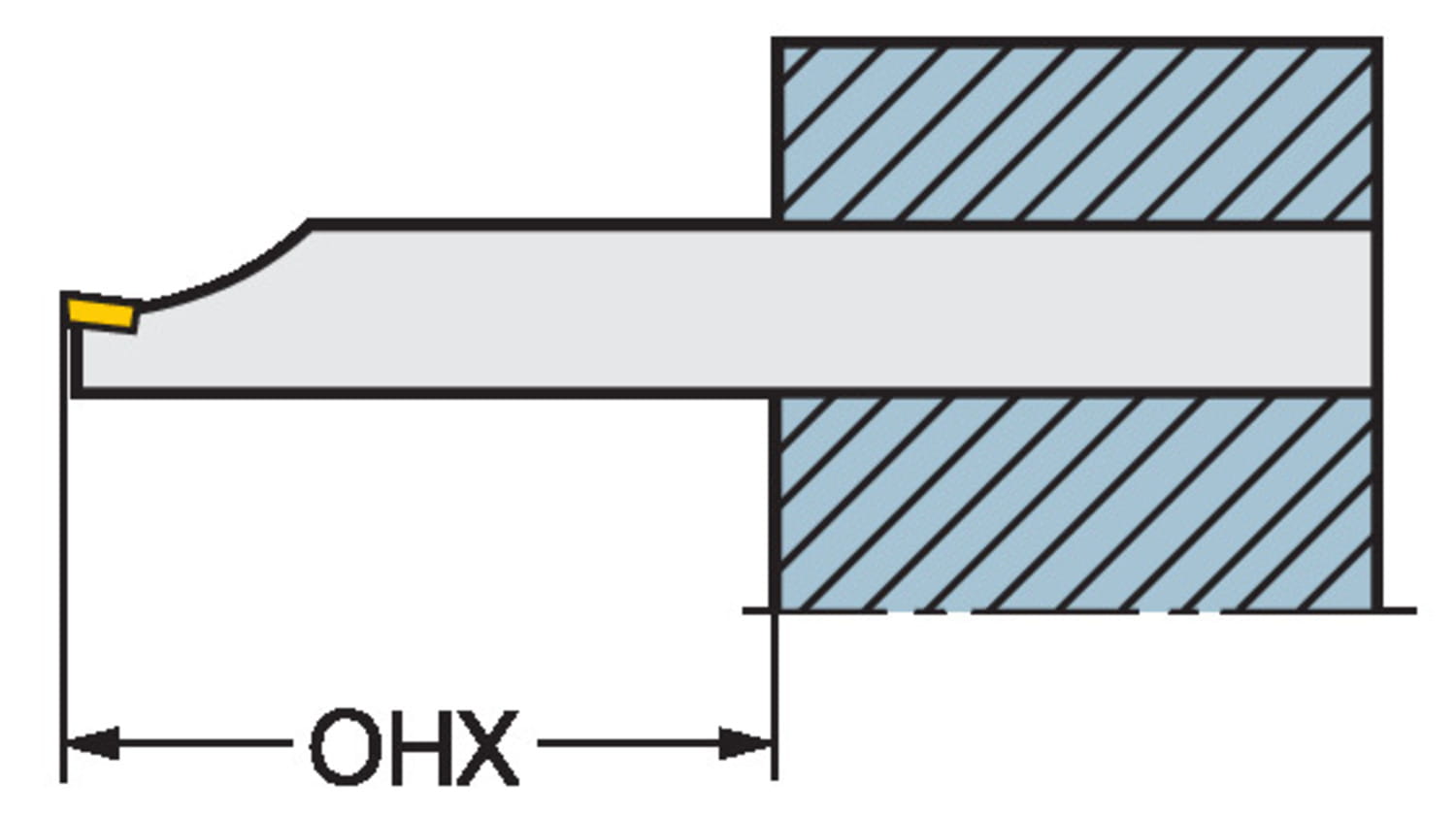

| Ohx Maximum Overhang | 3 inch |
| Ohx Maximum Overhang | 76.2 mm |
| Rmpx Maximum Ramping Angle | 0 deg |
| Inne parametry | |
| Ean Number | 12126656 |
