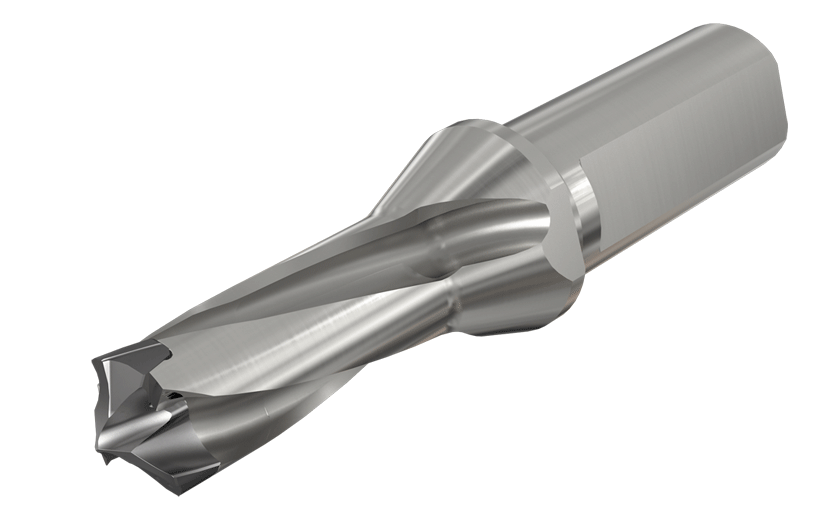

D3N 0630-095-075A-1.5D-Exchangeable head 3 flute drills with internal coolant holes and one flat shank. Drilling Depth: 1.5xD

Dostępność: duża ilość

Cena brutto: 1 118,43 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1118.43

Cena netto: 909,29 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 242,70 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3362945

D3N 0630-095-075A-1.5D

Podstawowe informacje
FamilyName	D3N A-1.5D
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3362945
ProductName	D3N 0630-095-075A-1.5D
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Exchangeable head 3 flute drills with internal coolant holes and one flat shank. Drilling Depth: 1.5xD
FamilyShortDesc	Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth: 1.5xD
Link	https://www.Iscar.com/ecat/e.asp?cat=3362945
Remarks	Do not mount smaller drilling heads other than the specified range of the drill body
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.4652
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3362945
Connection Diameter Machine Side (DCONMS)	3/4"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	0.63"
Cutting Diameter Maximum (DCX)	0.665"
Cutting Diameter Minimum (DCN)	0.63"
Decimal Equivalent	0.63"
Flange Diameter (DF)	0.984"
Insert Seat Size Code (SSC)	16
Master Insert Identification (MIID)	H3P 0630
Overall Length (OAL)	4.223"
Protruding Length (LPR)	2-1/4"
Point Length (PL)	0.1354"
Shank Length (LS)	1.97"
Usable Length (LU)	1.08"
