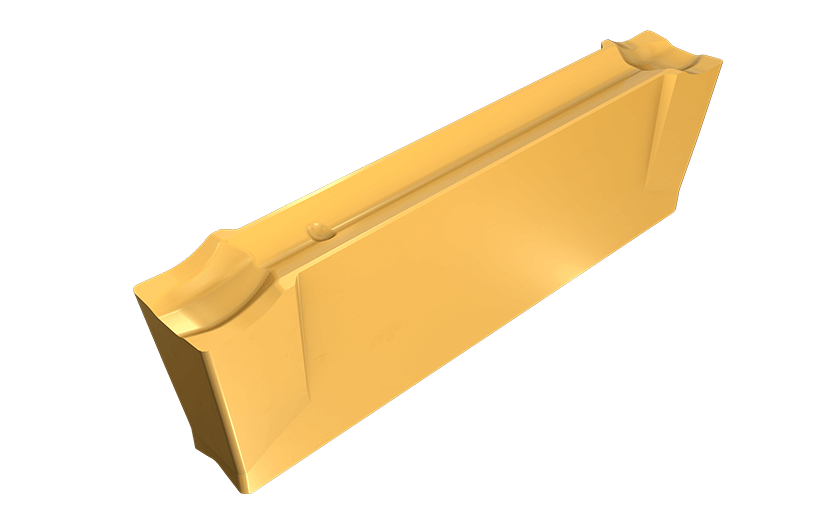

DGN 2502LF IC1010-Double-sided parting and grooving inserts, first choice for stainless steel applications.

Dostępność: duża ilość

Cena brutto: 91,33 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

91.33

Cena netto: 74,25 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 101,48 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3368315

DGN 2502LF IC1010

Podstawowe informacje
FamilyName	DGN-LF/LFT
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3368315
ProductName	DGN 2502LF IC1010
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Double-sided parting and grooving inserts, first choice for stainless steel applications.
FamilyShortDesc	Double-Sided Inserts for Parting and Grooving Stainless Steel
Link	https://www.Iscar.com/ecat/e.asp?cat=3368315
Remarks	The LFT chipformer features basically the same design as the LF chipformer, except that it is reinforced by a T-land to improve its durability in interrupted-cut or on hard materials applications. It can be applied at higher feeds than the LF chipformer
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. Grooving \| Face Grooving \| Face Grooving Along Shaft \| Int. Face Grooving \| Parting \|
APP1Name	Ext. Grooving
APP2Name	Face Grooving
APP3Name	Face Grooving Along Shaft
APP4Name	Int. Face Grooving
APP5Name	Parting
ItemRemark
Coating	TiAlN, TiN
Cutting Edge Material	Carbide
Tool Type	Parting & Grooving Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \|
Thread Standard
Package Weight	0.0047
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3368315
Grade	IC1010
Corner Radius (RE)	0.2 mm
Corner Radius Tolerance (+/-) (RETOL)	0.02 mm
Cutting Depth Maximum (CDX)	18 mm
Cutting Direction (HAND)	Neutral
Cutting Width (CW)	2.5 mm
Cutting Width Tolerance (+/-) (CWTOL)	0.03 mm
Max. Grooving Feed (fg(max))	0.08 mm/rev
Min. Grooving Feed (fg(min))	0.03 mm/rev
Overall Length (OAL)	19.8 mm
