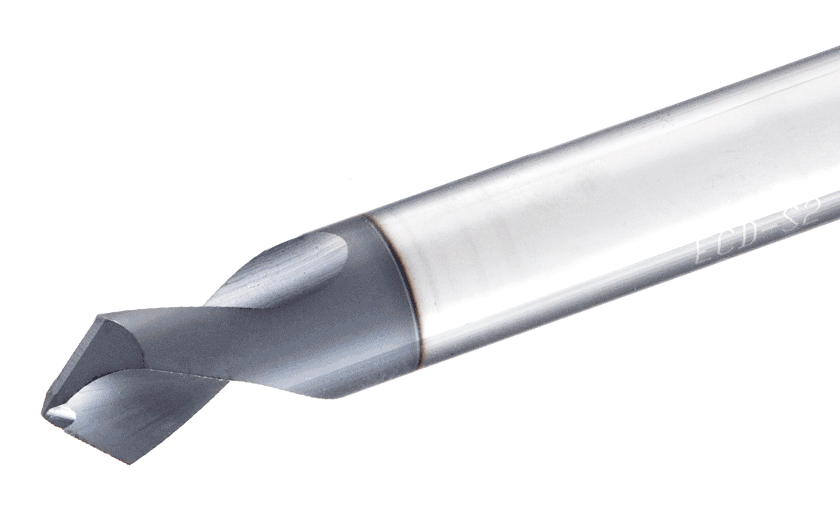

ECD-S2 040/60C04-50 IC900-Two flute chamfering, countersinking and spot drilling s olid carbide endmills.

Dostępność: duża ilość

Cena brutto: 175,70 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

175.70

Cena netto: 142,85 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 195,22 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3420479

ECD-S2 040/60C04-50 IC900

Podstawowe informacje
FamilyName	ECD-S2
ToolType	Solid
Unit	M
PackSize	1
product_code	ISC3420479
ProductName	ECD-S2 040/60C04-50 IC900
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	Two flute chamfering, countersinking and spot drilling s olid carbide endmills.
FamilyShortDesc	Chamfering and Spot Drilling Solid Carbide Tools
Link	https://www.Iscar.com/ecat/e.asp?cat=3420479
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Chamfering \| Countersinking \| Drill Mill \| Drilling \| Slanted Shoulder & Chamfer \|
APP1Name	Chamfering
APP2Name	Countersinking
APP3Name	Drill Mill
APP4Name	Drilling
APP5Name	Slanted Shoulder & Chamfer
ItemRemark
Coating	AlTiN
Cutting Edge Material	Carbide
Tool Type	Solid chamfering endmills
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0120
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3420479
Grade	IC900
Connection Code Machine Side (CCMS)	Cylindrical
Connection Diameter Machine Side (DCONMS)	4 mm
Cutting Diameter (DC)	4 mm
Depth of Cut Maximum (APMX)	2.75 mm
Flute Count (NOF)	2
Overall Length (OAL)	50 mm
Shank Type	Round
Usable Length (LU)	7.8 mm
