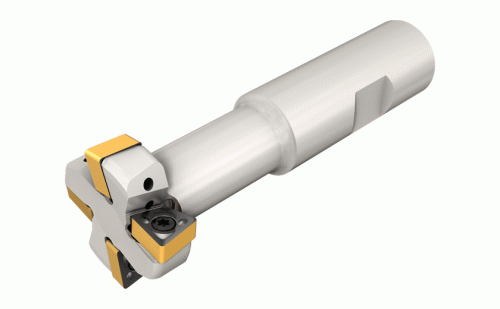

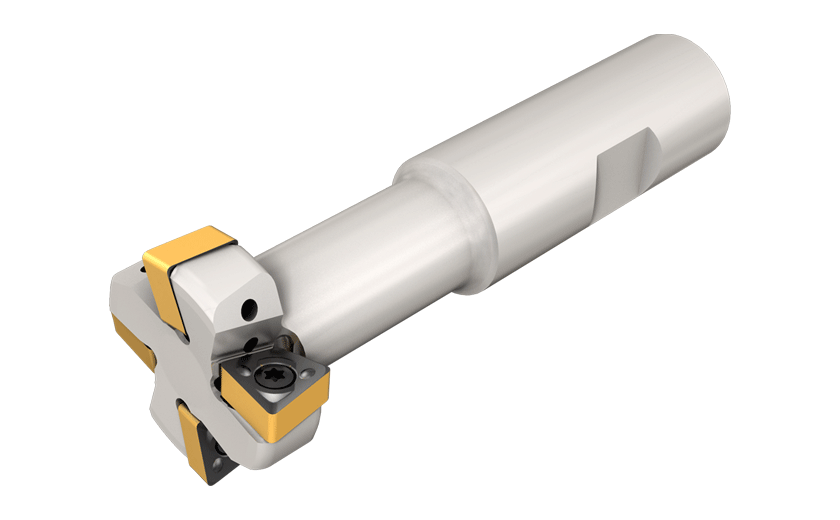

ETS D1.25-0.48-W0.75-XN09-T-SLOT endmills carrying XNMU 0904 square inserts with 4 right- and 4 left-hand cutting edges.

Dostępność: duża ilość

Cena brutto: 1 853,73 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1853.73

Cena netto: 1 507,10 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 2 059,70 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3393673

ETS D1.25-0.48-W0.75-XN09

Podstawowe informacje
FamilyName	ETS-XN09
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3393673
ProductName	ETS D1.25-0.48-W0.75-XN09
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	T-SLOT endmills carrying XNMU 0904 square inserts with 4 right- and 4 left-hand cutting edges.
FamilyShortDesc	T-SLOT Endmills Carrying XNMU 0904 Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges
Link	https://www.Iscar.com/ecat/e.asp?cat=3393673
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Facing \| Shouldering \| Side Slotting \| Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Bottom Shouldering
APP3Name	Facing
APP4Name	Shouldering
APP5Name	Side Slotting
APP6Name	Slotting
ItemRemark
Tool Type	Double-sided slotting cutters
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.5335
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3393673
Connection Diameter Machine Side (DCONMS)	3/4"
Cutting Diameter (DC)	1-1/4"
Cutting Depth Maximum (CDX)	0.287"
Cutting Item Count (CICT)	4
Cutting Width (CW)	0.476"
Master Insert Identification (MIID)	XNMU 0904...
Overall Length (OAL)	3-3/4"
Peripheral Effective Cutting Edge Count (ZEFP)	2
Shank Type	Weldon
Usable Length (LU)	1-1/2"
