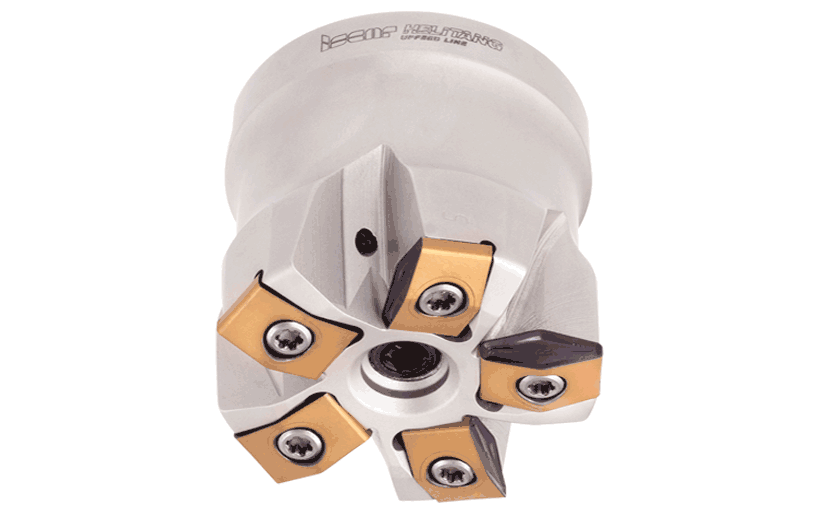

FFV D2.5-06-1.0-R-VN07-Fast feed shell mill, carrying tangentially clamped inserts with 4 cutting edges.

Dostępność: duża ilość

Cena brutto: 2 476,80 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2476.80

Cena netto: 2 013,66 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 2 752,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3346895

FFV D2.5-06-1.0-R-VN07

Podstawowe informacje
FamilyName	FFV-D-R-VN07
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3346895
ProductName	FFV D2.5-06-1.0-R-VN07
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Fast feed shell mill, carrying tangentially clamped inserts with 4 cutting edges.
FamilyShortDesc	Fast Feed Shell Mill Carrying Tangentially Clamped Inserts with 4 Cutting Edges
Link	https://www.Iscar.com/ecat/e.asp?cat=3346895
Remarks	Radius for programming .110 To generate a straight surface without cusps, the width of cut must not exceed DC
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Fast Feed Milling \| Helical Interpolation \| Plunging & Recessing \| Profiling \| Rampdown \| Side Plunging \|
APP1Name	Facing
APP2Name	Fast Feed Milling
APP3Name	Helical Interpolation
APP4Name	Plunging & Recessing
APP5Name	Profiling
APP6Name	Rampdown
APP7Name	Side Plunging
ItemRemark
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	1.8144
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3346895
Arbor Style	A
Connection Diameter Machine Side (DCONMS)	1"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	1.89"
Cutting Diameter Maximum (DCX)	2-1/2"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	6
Depth of Cut Maximum (APMX)	0.059"
Hub Diameter (DHUB)	2.252"
Master Insert Identification (MIID)	FF VNMT 0706ZN-ER
Overall Length (OAL)	1-3/4"
