» GD-DH 0.810-10D-I1.25-10-Gundrills carrying the TOGT triangular inserts, featuring 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed. The drills are available in 10, 15 and 25 drilling length to diameter ratios.

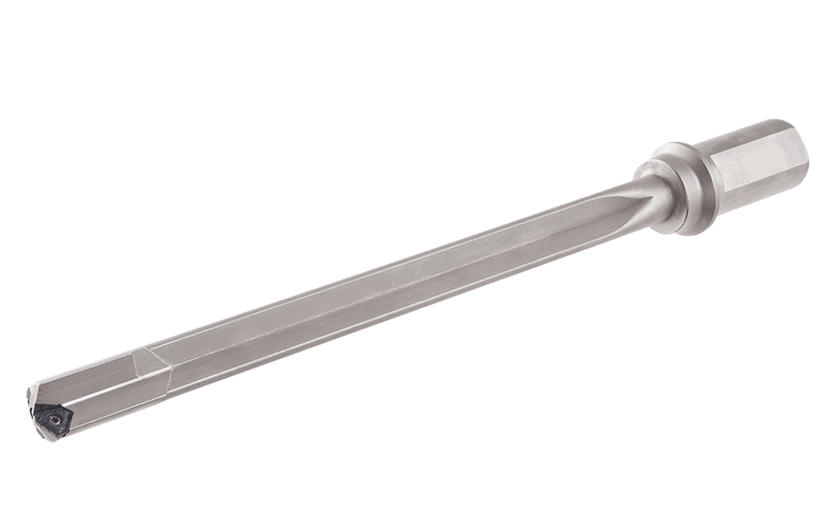

GD-DH 0.810-10D-I1.25-10-Gundrills carrying the TOGT triangular inserts, featuring 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed. The drills are available in 10, 15 and 25 drilling length to diameter ratios.

Dostępność: duża ilość

Cena brutto: 2 917,98 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2917.98

Cena netto: 2 372,34 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 242,20 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 4819608

GD-DH 0.810-10D-I1.25-10

Podstawowe informacje
FamilyName	GD-DH
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC4819608
ProductName	GD-DH 0.810-10D-I1.25-10
COO	Japan
UOM	EA
UNSPSC	23242106
FamilyDesc	Gundrills carrying the TOGT triangular inserts, featuring 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed. The drills are available in 10, 15 and 25 drilling length to diameter ratios.
FamilyShortDesc	Gundrills Carrying Triangular Inserts Featuring 3 Chip Splitting Cutting Edges and a Wiper for High Hole Surface Quality
Link	https://www.Iscar.com/ecat/e.asp?cat=4819608
Remarks	For inquiry form, pad and driver selection, click on More Info Note: Gundrills can be supplied with up to 95 length on request. Inserts and guide pads to be ordered separately (not included with the tools). Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole. Enter the guide hole slowly at a speed of 50 - 100 rpm.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \| Gundrills \|
APP1Name	Drilling
APP2Name	Gundrills
ItemRemark
Tool Type	Deep Hole / Gun Drill
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	1.7813
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	4819608
Connection Diameter Machine Side (DCONMS)	1-1/4"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	0.81"
Decimal Equivalent	0.81"
Functional Length (LF)	10.04"
Overall Length (OAL)	12.526"
Shank Length (LS)	2.36"
Usable Length (LU)	8.4"
