» HTP D042-4-M16-LN10-TANGPLUNGE, side plungers with FLEXFIT connection carrying tangentially clamped inserts with 4 cutting edges. 8 mm side plunging capacity and 3 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom

HTP D042-4-M16-LN10-TANGPLUNGE, side plungers with FLEXFIT connection carrying tangentially clamped inserts with 4 cutting edges. 8 mm side plunging capacity and 3 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom

Dostępność: duża ilość

Cena brutto: 1 710,54 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1710.54

Cena netto: 1 390,68 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 900,60 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3105122

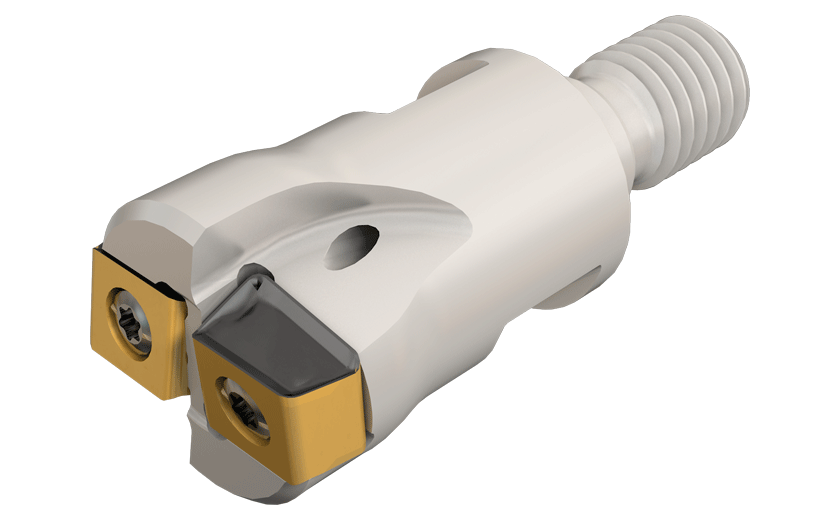

HTP D042-4-M16-LN10

Podstawowe informacje
FamilyName	HTP-M-LN10
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3105122
ProductName	HTP D042-4-M16-LN10
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	TANGPLUNGE, side plungers with FLEXFIT connection carrying tangentially clamped inserts with 4 cutting edges. 8 mm side plunging capacity and 3 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom
FamilyShortDesc	Side Plungers with FLEXFIT Threaded Connection Carrying Tangentially Clamped Inserts with 4 Cutting Edges
Link	https://www.Iscar.com/ecat/e.asp?cat=3105122
Remarks	For adaptation, click on More Info. When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Shouldering \| Side Plunging \|
APP1Name	Facing
APP2Name	Shouldering
APP3Name	Side Plunging
ItemRemark
Tool Type	Plungers cutters
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.3750
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3105122
Body Diameter (BD)	29 mm
Connection Code Machine Side (CCMS)	FLEXFIT
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	42 mm
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	4
Depth of Cut Maximum (APMX)	3 mm
Face Effective Cutting Edge Count (ZEFF)	4
Functional Length (LF)	43 mm
Overall Length (OAL)	68 mm
