» MD-MNC 450-219-W7-Exchangeable drilling heads with Iscar MD connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral triangular WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter

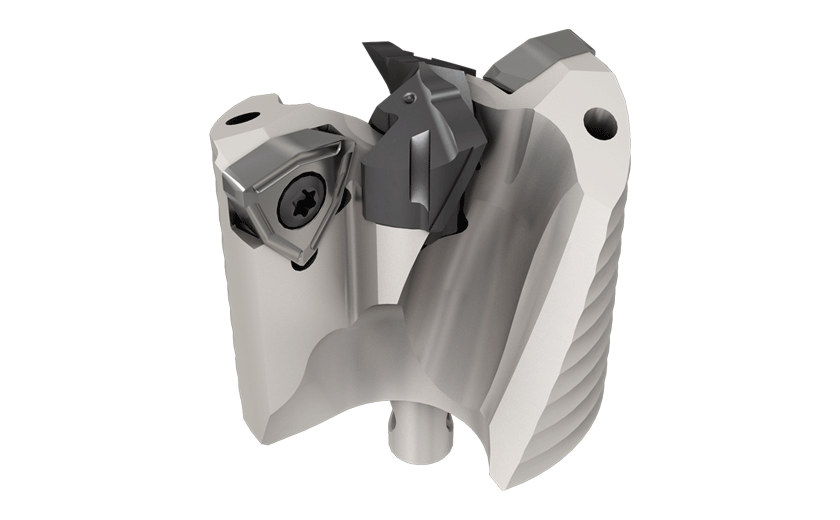

MD-MNC 450-219-W7-Exchangeable drilling heads with Iscar MD connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral triangular WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter

Dostępność: duża ilość

Cena brutto: 4 169,97 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

4169.97

Cena netto: 3 390,22 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 255,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3459645

MD-MNC 450-219-W7

Podstawowe informacje
FamilyName	MD-MNC-HEAD
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3459645
ProductName	MD-MNC 450-219-W7
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Exchangeable drilling heads with Iscar MD connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral triangular WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter
FamilyShortDesc	Exchangeable Modular Drilling Heads with a Pilot SUMO-CHAM Head and Peripheral Triangular Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3459645
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.3000
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3459645
Connection Diameter Machine Side (DCONMS)	7.1 mm
Cutting Diameter (DC)	45 mm
Decimal Equivalent
Master Insert Identification (MIID)	ICP 219-MNC 4F
Protruding Length (LPR)	35.7 mm
Point Length (PL)	5.4 mm
