» MD-MNC 550-IMH50-279-W8-Exchangeable drilling heads with IMH connection, carrying SUMOC-HAM pilot insert for precise centering, as well as two peripheral trigon WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter

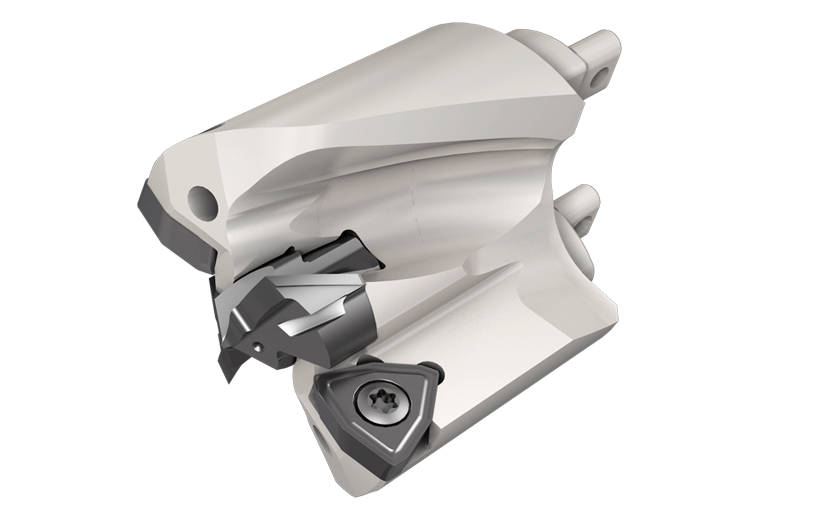

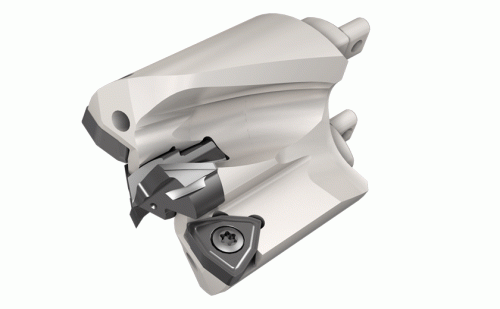

MD-MNC 550-IMH50-279-W8-Exchangeable drilling heads with IMH connection, carrying SUMOC-HAM pilot insert for precise centering, as well as two peripheral trigon WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter

Dostępność: duża ilość

Cena brutto: 3 165,66 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

3165.66

Cena netto: 2 573,71 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 517,40 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3440059

MD-MNC 550-IMH50-279-W8

Podstawowe informacje
FamilyName	MD-MNC-IMH
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3440059
ProductName	MD-MNC 550-IMH50-279-W8
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Exchangeable drilling heads with IMH connection, carrying SUMOC-HAM pilot insert for precise centering, as well as two peripheral trigon WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter
FamilyShortDesc	Exchangeable IMH Drilling Heads with a Pilot SUMO-CHAM Head and Peripheral Trigon Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3440059
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.5750
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3440059
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	55 mm
Decimal Equivalent
Insert Seat Size Code (SSC)	8
Master Insert Identification (MIID)	ICP 279-MNC 4F
Protruding Length (LPR)	54.6 mm
Point Length (PL)	6.4 mm
