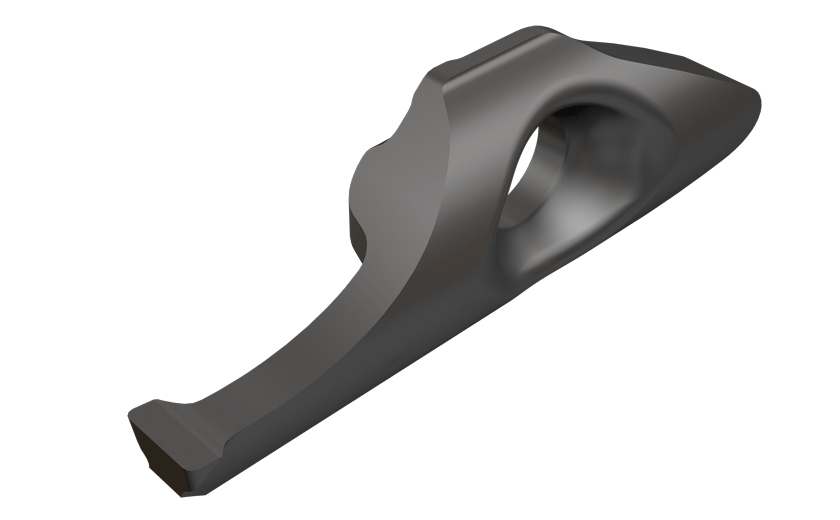

MIFR 15-3.50-0.20 IC908-MINCUT screw-clamped inserts for internal face grooving and turning with uninterrupted chip flow

Dostępność: duża ilość

Cena brutto: 152,09 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

152.09

Cena netto: 123,65 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 168,99 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3300282

MIFR 15-3.50-0.20 IC908

Podstawowe informacje
FamilyName	MIFR
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3300282
ProductName	MIFR 15-3.50-0.20 IC908
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	MINCUT screw-clamped inserts for internal face grooving and turning with uninterrupted chip flow
FamilyShortDesc	Screw-Clamped Inserts for Internal Face Grooving and Turning
Link	https://www.Iscar.com/ecat/e.asp?cat=3300282
Remarks	Recommended cutting speeds and feeds can be increased by 20-30% for aluminum, and reduced by 20-30% for titanium and Inconel
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Face Grooving \| Face Grooving & Turning \| Int. Face Grooving \| Int. Face Recessing \|
APP1Name	Face Grooving
APP2Name	Face Grooving & Turning
APP3Name	Int. Face Grooving
APP4Name	Int. Face Recessing
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Face Turn-Groove Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0097
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3300282
Grade	IC908
Axial Groove Outside Diameter Minimum (DAXN)	10 mm
Corner Radius (RE)	0.2 mm
Cutting Depth Maximum (CDX)	15 mm
Cutting Width (CW)	3.5 mm
Depth of Cut Maximum (APMX)	0.7 mm
Functional Width (WF)	6 mm
Insert Length (INSL)	30 mm
Insert Thickness Total (S1)	9 mm
Max. Face Grooving Feed (ffg(max))	0.05 mm/rev
Min D.O.C.	0.2 mm
Min. Face Grooving Feed (ffg(min))	0.03 mm/rev
Min. Face Turning Feed (fft(min))	0.03 mm/rev
