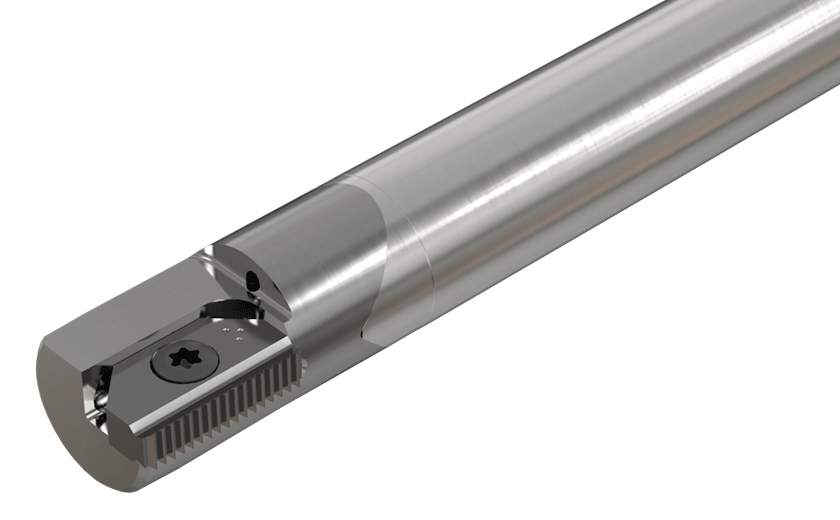

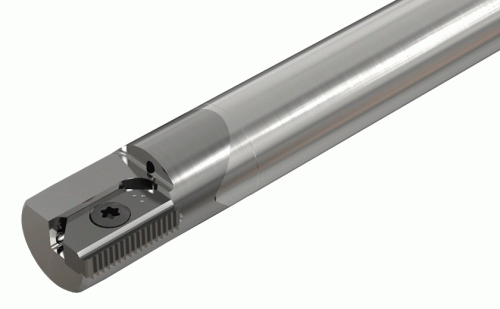

MTE D0.39-1-C.312C-12-Indexable threading endmills with long cylindrical carbide shanks and coolant holes.

Dostępność: duża ilość

Cena brutto: 1 571,22 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1571.22

Cena netto: 1 277,41 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 745,80 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3323191

MTE D0.39-1-C.312C-12

Podstawowe informacje
FamilyName	MTE D-C
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3323191
ProductName	MTE D0.39-1-C.312C-12
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Indexable threading endmills with long cylindrical carbide shanks and coolant holes.
FamilyShortDesc	Indexable Threading Endmills with Cylindrical Carbide Shanks
Link	https://www.Iscar.com/ecat/e.asp?cat=3323191
Remarks	For holders with a long overhang, reduce the cutting speed and feed rate, between 20 to 40% (depending on workpiece, material, pitch and overhang)
FamilyBrand	Iscar
BrandName	Iscar
Application	\| External Thread Milling \| Internal Thread Milling \|
APP1Name	External Thread Milling
APP2Name	Internal Thread Milling
ItemRemark
Tool Type	Indexable thread mills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.3395
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3323191
Connection Code Machine Side (CCMS)	Cylindrical
Connection Diameter Machine Side (DCONMS)	0.312"
Coolant Supply Property (CSP)	External
Cutting Diameter (DC)	0.39"
Depth of Cut Maximum (APMX)	0.472"
Flute Count (NOF)	1
Overall Length (OAL)	5-1/8"
Shank Type	Round
