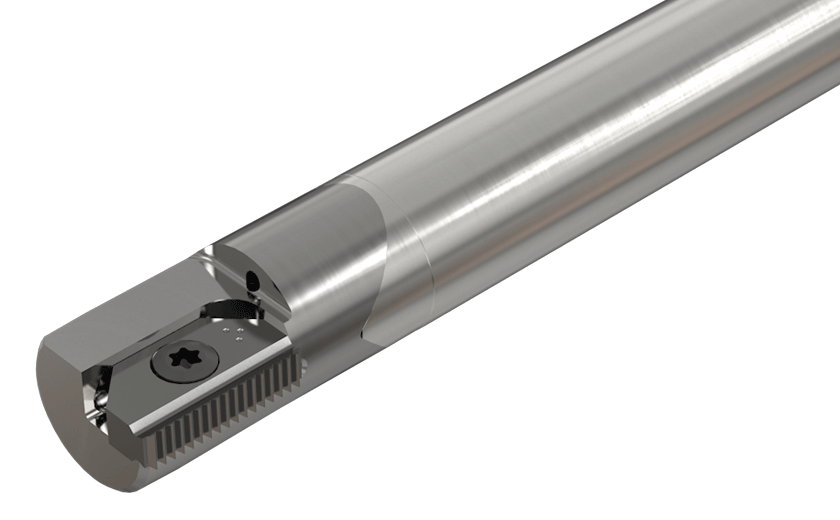

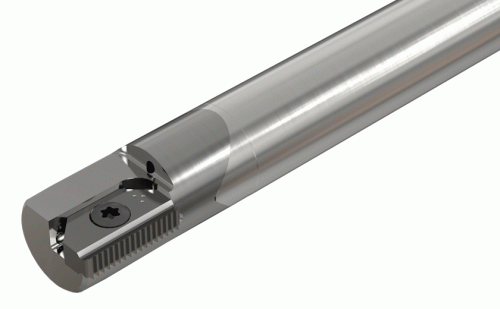

MTE D0.62-1-C.500C-14-Indexable threading endmills with long cylindrical carbide shanks and coolant holes.

Dostępność: duża ilość

Cena brutto: 2 619,99 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2619.99

Cena netto: 2 130,07 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 2 911,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3346924

MTE D0.62-1-C.500C-14

Podstawowe informacje
FamilyName	MTE D-C
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3346924
ProductName	MTE D0.62-1-C.500C-14
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Indexable threading endmills with long cylindrical carbide shanks and coolant holes.
FamilyShortDesc	Indexable Threading Endmills with Cylindrical Carbide Shanks
Link	https://www.Iscar.com/ecat/e.asp?cat=3346924
Remarks	For holders with a long overhang, reduce the cutting speed and feed rate, between 20 to 40% (depending on workpiece, material, pitch and overhang)
FamilyBrand	Iscar
BrandName	Iscar
Application	\| External Thread Milling \| Internal Thread Milling \|
APP1Name	External Thread Milling
APP2Name	Internal Thread Milling
ItemRemark
Tool Type	Indexable thread mills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.7915
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3346924
Connection Code Machine Side (CCMS)	Cylindrical
Connection Diameter Machine Side (DCONMS)	1/2"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	0.62"
Depth of Cut Maximum (APMX)	0.551"
Flute Count (NOF)	1
Overall Length (OAL)	7.05"
Shank Type	Round
