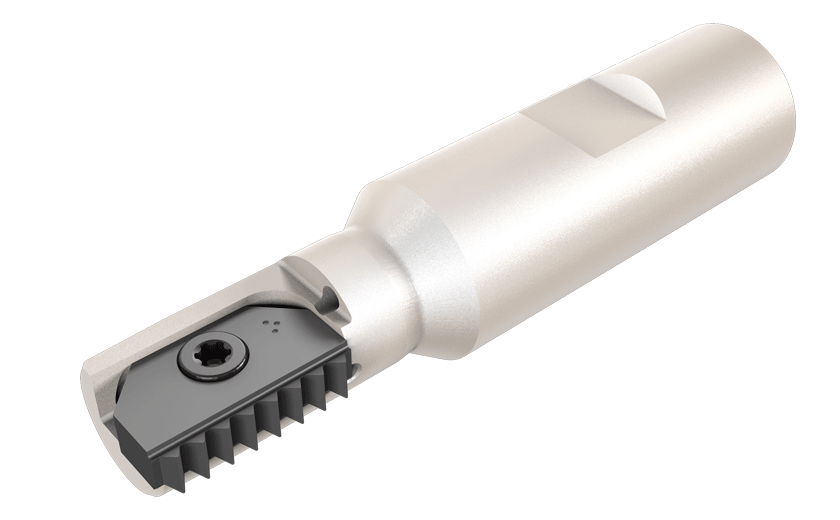

MTE D48-1-W40-40-Indexable threading endmills with Weldon shank and coolant holes.

Dostępność: duża ilość

Cena brutto: 1 660,23 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1660.23

Cena netto: 1 349,78 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 844,70 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3346934

MTE D48-1-W40-40

Podstawowe informacje
FamilyName	MTE D
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3346934
ProductName	MTE D48-1-W40-40
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Indexable threading endmills with Weldon shank and coolant holes.
FamilyShortDesc	Indexable Threading Endmills
Link	https://www.Iscar.com/ecat/e.asp?cat=3346934
Remarks	For adaptation click on More Info. All endmills are equipped with a bore for internal coolant Tool cutting diameter should not exceed 2/3 of thread bore diameter
FamilyBrand	Iscar
BrandName	Iscar
Application	\| External Thread Milling \| Internal Thread Milling \|
APP1Name	External Thread Milling
APP2Name	Internal Thread Milling
ItemRemark
Tool Type	Indexable thread mills
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	1.3590
Style
MSDS	07995
LocalField1	21
Body Material	Steel
ManufacturerNo	3346934
Body Diameter (BD)	35 mm
Connection Code Machine Side (CCMS)	Weldon
Connection Diameter Machine Side (DCONMS)	40 mm
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	48 mm
Depth of Cut Maximum (APMX)	40 mm
Flute Count (NOF)	1
Overall Length (OAL)	153 mm
Shank Type	Weldon
Usable Length (LU)	78 mm
