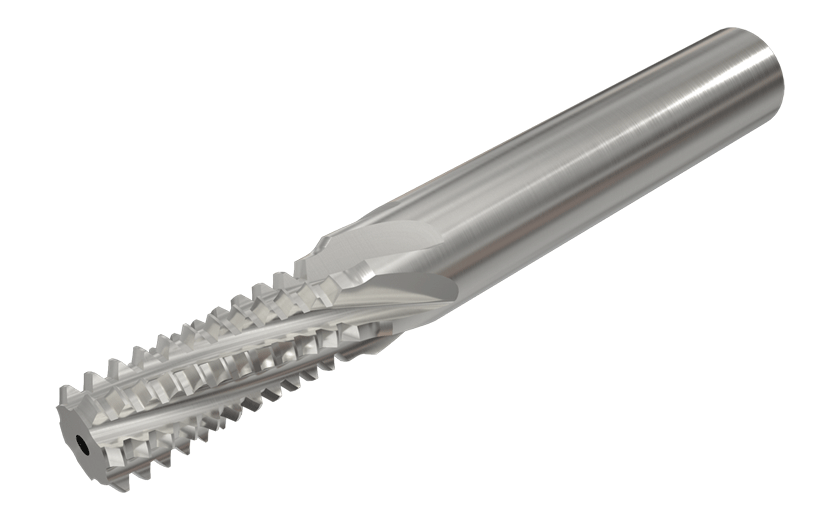

MTECBF 0806F14 18UN IC908-Solid carbide internal threading endmills with a coolant hole. Intended for UN thread profile.

Dostępność: duża ilość

Cena brutto: 1 203,57 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1203.57

Cena netto: 978,51 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 337,30 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3394879

MTECBF 0806F14 18UN IC908

Podstawowe informacje
FamilyName	MTECBF-UN
ToolType	Solid
Unit	M
PackSize	1
product_code	ISC3394879
ProductName	MTECBF 0806F14 18UN IC908
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	Solid carbide internal threading endmills with a coolant hole. Intended for UN thread profile.
FamilyShortDesc	Solid Carbide Internal Threading Endmills with a Coolant Hole. Intended for UN Thread Profile.
Link	https://www.Iscar.com/ecat/e.asp?cat=3394879
Remarks	Internal & External tolerance: ISO 228-1 - Medium class
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Internal Thread Milling \| Solid Tools \|
APP1Name	Internal Thread Milling
APP2Name	Solid Tools
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid carbide thread mills
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard	UNC \|
Package Weight	0.0400
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3394879
Grade	IC908
Connection Code Machine Side (CCMS)	Cylindrical
Connection Diameter Machine Side (DCONMS)	8 mm
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	6 mm
Depth of Cut Maximum (APMX)	14.7 mm
Flute Count (NOF)	6
Overall Length (OAL)	64 mm
Shank Type	Round
Thread Pitch (TP)	1.411 mm
Threads per Inch (TPI)	18
Thread Size	5/16"
