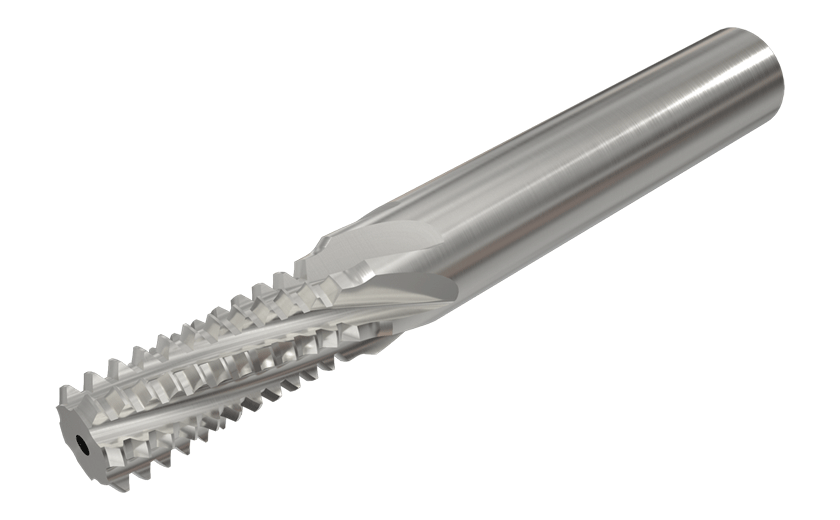

MTECBF 16116F26 12UN IC908-Solid carbide internal threading endmills with a coolant hole. Intended for UN thread profile.

Dostępność: duża ilość

Cena brutto: 2 093,67 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2093.67

Cena netto: 1 702,17 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 2 326,30 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3418744

MTECBF 16116F26 12UN IC908

Podstawowe informacje
FamilyName	MTECBF-UN
ToolType	Solid
Unit	M
PackSize	1
product_code	ISC3418744
ProductName	MTECBF 16116F26 12UN IC908
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	Solid carbide internal threading endmills with a coolant hole. Intended for UN thread profile.
FamilyShortDesc	Solid Carbide Internal Threading Endmills with a Coolant Hole. Intended for UN Thread Profile.
Link	https://www.Iscar.com/ecat/e.asp?cat=3418744
Remarks	Internal & External tolerance: ISO 228-1 - Medium class
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Internal Thread Milling \| Solid Tools \|
APP1Name	Internal Thread Milling
APP2Name	Solid Tools
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid carbide thread mills
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard	UNC \|UNF \|
Package Weight	0.0610
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3418744
Grade	IC908
Connection Code Machine Side (CCMS)	Cylindrical
Connection Diameter Machine Side (DCONMS)	16 mm
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	11.6 mm
Depth of Cut Maximum (APMX)	26.4 mm
Flute Count (NOF)	6
Overall Length (OAL)	105 mm
Shank Type	Round
Thread Pitch (TP)	2.117 mm
Threads per Inch (TPI)	12
Thread Size	5/8"
