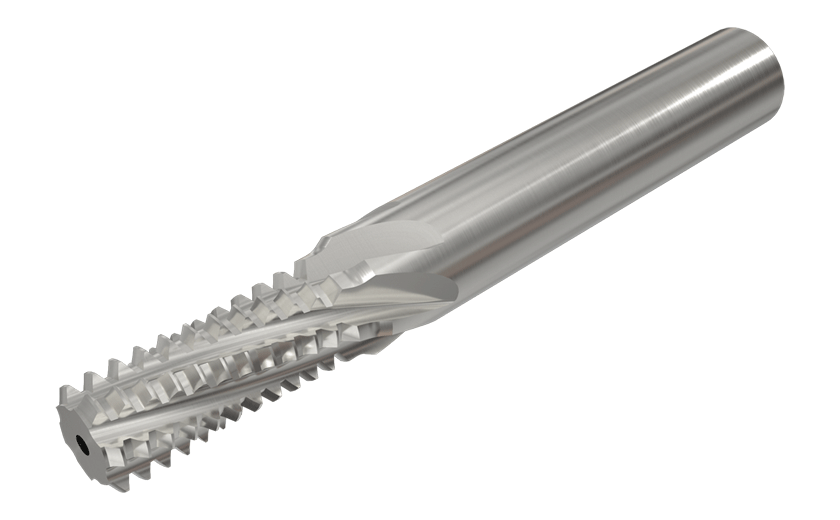

MTECBF08064G14 1.25ISO IC908-Solid carbide internal threading endmills with a coolant hole. Intended for ISO thread profiles.

Dostępność: duża ilość

Cena brutto: 1 308,06 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1308.06

Cena netto: 1 063,46 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 453,40 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3394347

MTECBF08064G14 1.25ISO IC908

Podstawowe informacje
FamilyName	MTECBF-ISO
ToolType	Solid
Unit	M
PackSize	1
product_code	ISC3394347
ProductName	MTECBF08064G14 1.25ISO IC908
COO	Israel
UOM	EA
UNSPSC	23241614
FamilyDesc	Solid carbide internal threading endmills with a coolant hole. Intended for ISO thread profiles.
FamilyShortDesc	Solid Carbide Internal Threading Endmills with a Coolant Hole. Intended for ISO Thread Profiles.
Link	https://www.Iscar.com/ecat/e.asp?cat=3394347
Remarks	Internal & External tolerance: ISO 228-1 - Medium class
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Internal Thread Milling \| Solid Tools \|
APP1Name	Internal Thread Milling
APP2Name	Solid Tools
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid carbide thread mills
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard	MC \|MF \|THFT \|
Package Weight	0.0420
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3394347
Grade	IC908
Connection Code Machine Side (CCMS)	Cylindrical
Connection Diameter Machine Side (DCONMS)	8 mm
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	6.4 mm
Depth of Cut Maximum (APMX)	14 mm
Flute Count (NOF)	7
Overall Length (OAL)	64 mm
Shank Type	Round
Thread Form Type (THFT)	M60
Thread Pitch (TP)	1.25 mm
Thread Size	M8
