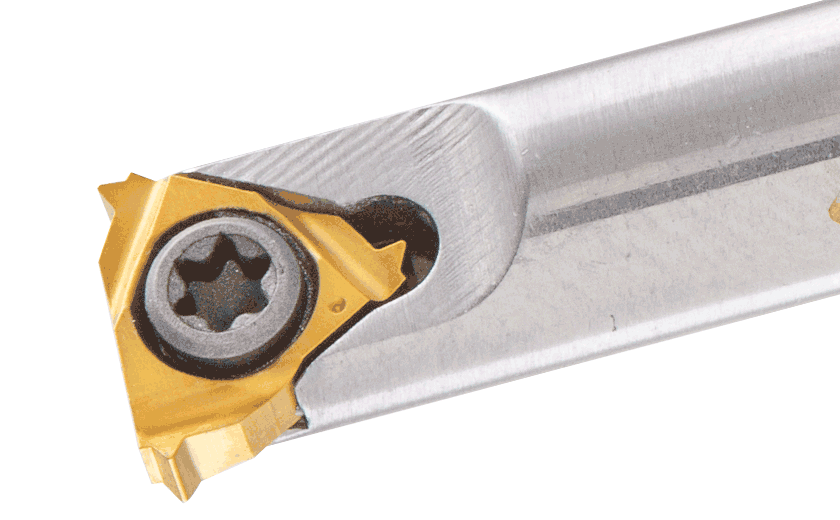

MTET D.50-1-C.38C-11-Indexable threading endmills with cylindrical shanks and coolant holes for single point inserts.

Dostępność: duża ilość

Cena brutto: 2 500,02 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2500.02

Cena netto: 2 032,54 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 2 777,80 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3324565

MTET D.50-1-C.38C-11

Podstawowe informacje
FamilyName	MTET Single Point
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3324565
ProductName	MTET D.50-1-C.38C-11
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Indexable threading endmills with cylindrical shanks and coolant holes for single point inserts.
FamilyShortDesc	Indexable Threading Endmills with Cylindrical Shanks for Single Point Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3324565
Remarks	Tool cutting diameter should not exceed 2/3 of thread bore diameter
FamilyBrand	Iscar
BrandName	Iscar
Application	\| External Thread Milling \| Internal Thread Milling \|
APP1Name	External Thread Milling
APP2Name	Internal Thread Milling
ItemRemark	For internal threading use internal R.H insert, for external threading use external L.H insert
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.3351
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3324565
Connection Code Machine Side (CCMS)	Cylindrical
Connection Diameter Machine Side (DCONMS)	3/8"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	1/2"
Flute Count (NOF)	1
Overall Length (OAL)	6"
Shank Type	Round
