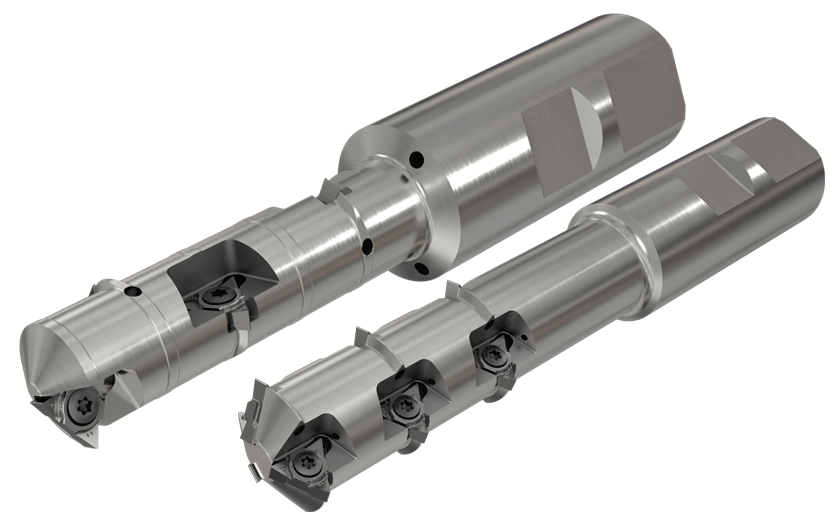

MTET D25-3-21-3-W25-11U-Indexable threading endmills with Weldon shanks and coolant holes for single point inserts

Dostępność: duża ilość

Cena brutto: 2 256,21 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2256.21

Cena netto: 1 834,32 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 2 506,90 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3417613

MTET D25-3-21-3-W25-11U

Podstawowe informacje
FamilyName	MTET Step Release
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3417613
ProductName	MTET D25-3-21-3-W25-11U
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Indexable threading endmills with Weldon shanks and coolant holes for single point inserts
FamilyShortDesc	Indexable Threading Endmills with Weldon Shanks for Single Point Inserts
Link	https://www.Iscar.com/ecat/e.asp?cat=3417613
Remarks	Tool cutting diameter should not exceed 2/3 of thread bore diameter
FamilyBrand	Iscar
BrandName	Iscar
Application	\| External Thread Milling \| Internal Thread Milling \|
APP1Name	External Thread Milling
APP2Name	Internal Thread Milling
ItemRemark
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.4360
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3417613
Connection Code Machine Side (CCMS)	Weldon
Connection Diameter Machine Side (DCONMS)	25 mm
Cutting Diameter (DC)	25 mm
Flute Count (NOF)	3
Overall Length (OAL)	144.6 mm
Shank Type	Weldon
