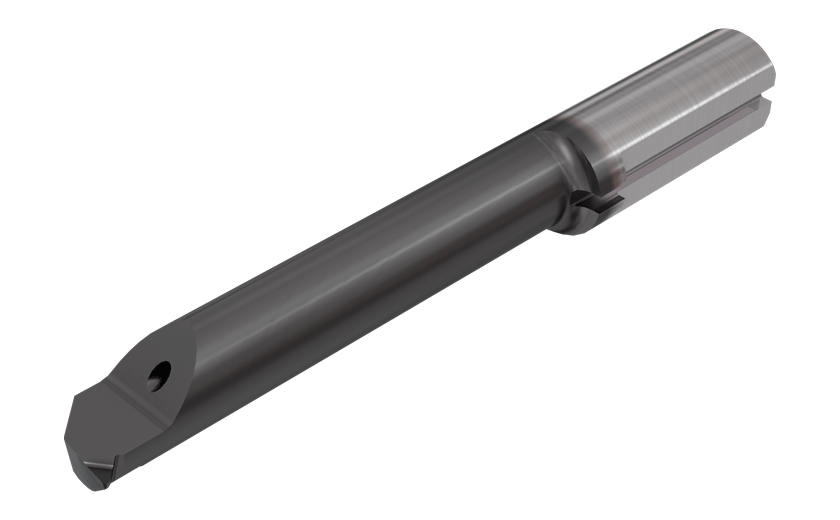

PICJ RT47D60R15-30 IC908-PICCOCUT inserts for internal deep profiling

Dostępność: duża ilość

Cena brutto: 185,37 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

185.37

Cena netto: 150,71 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 205,97 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3425360

PICJ RT47D60R15-30 IC908

Podstawowe informacje
FamilyName	PICJ R/LT47
ToolType	Solid
Unit	M
PackSize	1
product_code	ISC3425360
ProductName	PICJ RT47D60R15-30 IC908
COO	Israel
UOM	EA
UNSPSC	23241601
FamilyDesc	PICCOCUT inserts for internal deep profiling
FamilyShortDesc	Inserts for Internal Deep Profiling
Link	https://www.Iscar.com/ecat/e.asp?cat=3425360
Remarks	Left hand inserts on request PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Int. Boring and Profiling \|
APP1Name	Int. Boring and Profiling
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid Carbide Turn Tool
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0160
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3425360
Grade	IC908
Connection Diameter Machine Side (DCONMS)	6 mm
Corner Radius (RE)	0.15 mm
Cutting Depth Maximum (CDX)	0.5 mm
Front End Width (a)	5.3 mm
Functional Length (LF)	45 mm
Functional Width (WF)	2.3 mm
Minimum Bore Diameter (DMIN)	6 mm
Usable Length (LU)	29 mm
