PICJ RTH14I1.00D060 IC908-

Dostępność: duża ilość

Cena brutto: 261,82 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

261.82

Cena netto: 212,86 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 156,95 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3425306

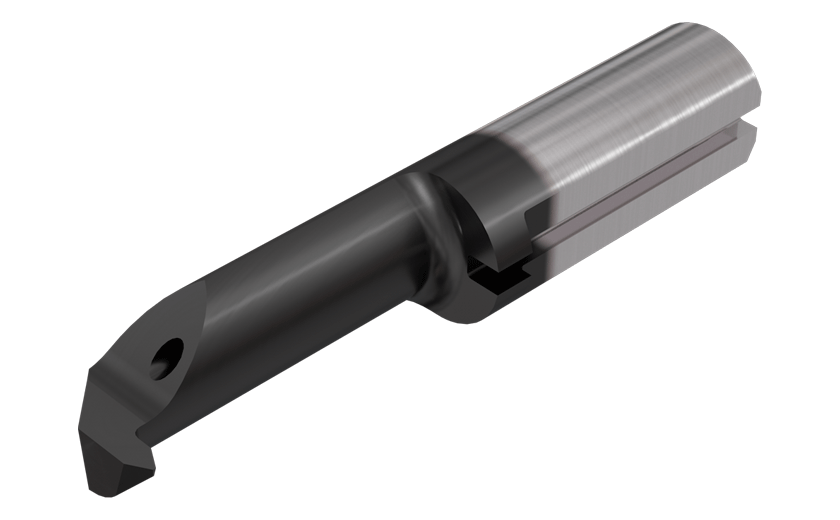

PICJ RTH14I1.00D060 IC908

Podstawowe informacje
FamilyName	PICJ R/LTH (60° Threading)
ToolType	Solid
Unit	M
PackSize	1
product_code	ISC3425306
ProductName	PICJ RTH14I1.00D060 IC908
COO	Israel
UOM	EA
UNSPSC	23242117
FamilyDesc
FamilyShortDesc	Inserts with a 60° Internal Thread Profile and Inner Coolant Channel for 2.4mm min. Bore Diameter
Link	https://www.Iscar.com/ecat/e.asp?cat=3425306
Remarks	DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H ANSI/ASME B1.1 - Internal tolerance: 2B PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Threading (Int.) \|
APP1Name	Threading (Int.)
ItemRemark
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid Threading Tools
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard	THFT \|
Package Weight	0.0110
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3425306
Grade	IC908
Central Flat (CF)	0.12 mm
Connection Diameter Machine Side (DCONMS)	6 mm
Cutting Direction (HAND)	Right Hand
Front End Width (a)	5.3 mm
Functional Length (LF)	30 mm
Functional Width (WF)	2.3 mm
Minimum Bore Diameter (DMIN)	6 mm
Thread Form Type (THFT)	VP60
Thread Pitch (TP)	1 mm
