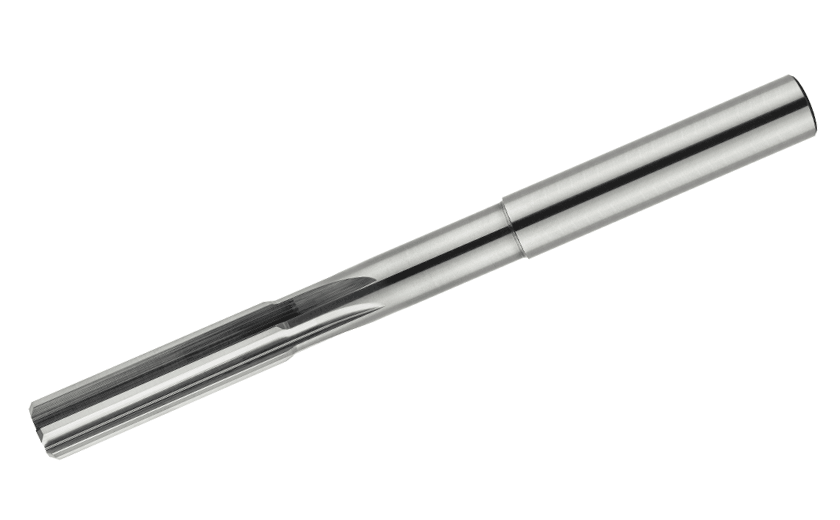

RM-FCR-1600-H7S-CS-C IC07-DIN 212C solid carbide reamers with straight flutes and a cylindrical shank for blind holes

Dostępność: duża ilość

Cena brutto: 1 517,04 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

1517.04

Cena netto: 1 233,37 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 685,60 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 1813246

RM-FCR-1600-H7S-CS-C IC07

Podstawowe informacje
FamilyName	RM-FCR-H7S-CS-C
ToolType	Solid
Unit	M
PackSize	1
product_code	ISC1813246
ProductName	RM-FCR-1600-H7S-CS-C IC07
COO	Italy
UOM	EA
UNSPSC	23241611
FamilyDesc	DIN 212C solid carbide reamers with straight flutes and a cylindrical shank for blind holes
FamilyShortDesc	DIN 212C Solid Carbide Reamers with Straight Flutes and a Cylindrical Shank for Blind Holes
Link	https://www.Iscar.com/ecat/e.asp?cat=1813246
Remarks	Hole tolerance: H7 manufacturing tolerance according to DIN1420 Available grades: IC07 - uncoated, optional: IC907 - TiAlN PVD coated Special diameters are available on request
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Blind & Perpendicular Hole \| Blind & Radial Groove \| Blind Hole \|
APP1Name	Blind & Perpendicular Hole
APP2Name	Blind & Radial Groove
APP3Name	Blind Hole
ItemRemark
Coating	Uncoated
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Stainless Steel \| Aluminum / Non-Ferrous Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.3330
Style
MSDS	07999
LocalField1	21
Body Material	Carbide
ManufacturerNo	1813246
Grade	IC07
Connection Diameter Machine Side (DCONMS)	12.5 mm
Cutting Edge Length (L)	52 mm
Overall Length (OAL)	170 mm
