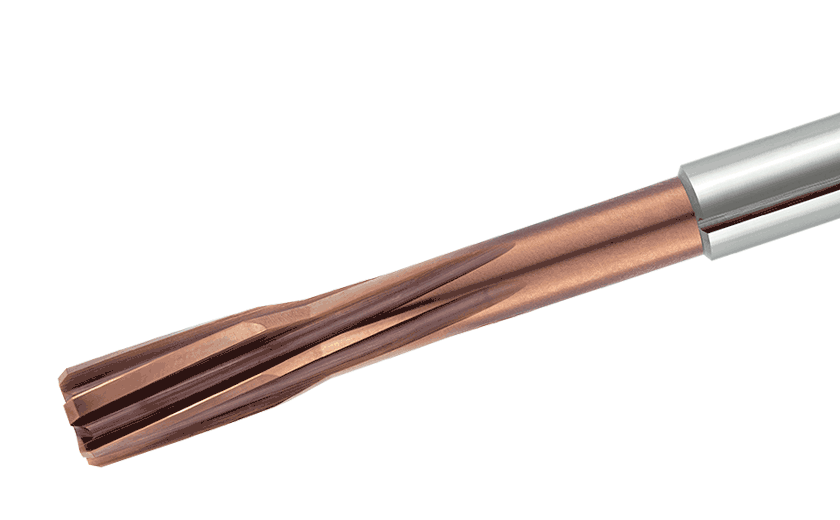

RM-MTR-1000-H7N-CS-C EVO-MTR UOP, Helical flute PVD coated solid carbide reamers with cylindrical shank and coolant grooves for high speed reaming. Unequal pitch for chatter dampening
Dostępność:
duża ilość
Cena brutto:
672,76 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
546,96 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
747,51 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
1823065
Opis
RM-MTR-1000-H7N-CS-C EVO
| Podstawowe informacje | |
|---|---|
| FamilyName | RM-MTR-H7N-CS-C |
| ToolType | Solid |
| Unit | M |
| PackSize | 1 |
| product_code | ISC1823065 |
| ProductName | RM-MTR-1000-H7N-CS-C EVO |
| COO | Italy |
| UOM | EA |
| UNSPSC | 23241611 |
| FamilyDesc | MTR UOP, Helical flute PVD coated solid carbide reamers with cylindrical shank and coolant grooves for high speed reaming. Unequal pitch for chatter dampening |
| FamilyShortDesc | Solid Carbide Reamers with Helical Flutes, Unequal Pitch and Coolant Grooves for High Speed Reaming of Through Holes |
| Link | https://www.Iscar.com/ecat/e.asp?cat=1823065 |
| Remarks | EVO is a hard submicron IC07 carbide substrate with an ultra-thin silicon based PVD coating, obtained by High Density Plasma (HDP) technology. Hole tolerance: H7 manufacturing tolerance according to DIN 1420 For machining recommendations, click on More Info |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Stacked Plates | Through & Axial Groove | Through & Perpendicular Holes | Through & Radial Groove | Through Hole | |
| APP1Name | Stacked Plates |
| APP2Name | Through & Axial Groove |
| APP3Name | Through & Perpendicular Holes |
| APP4Name | Through & Radial Groove |
| APP5Name | Through Hole |
| ItemRemark | |
| Coating | evotec for reamers UOP |
| Cutting Edge Material | |
| Point Shape | |
| Measurement Type | Metric |
| Applicable Material | |
| Thread Standard | |
| Package Weight | 0.0950 |
| Style | |
| MSDS | 07999 |
| LocalField1 | 2 |
| Body Material | Carbide |
| ManufacturerNo | 1823065 |
| Grade | EVO |
| Body Diameter (BD) | 8 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 10 mm |
| Cutting Edge Length (L) | 18 mm |
| Flute Count (NOF) | 6 |
| Overall Length (OAL) | 101 mm |
| Usable Length (LU) | 61 mm |
