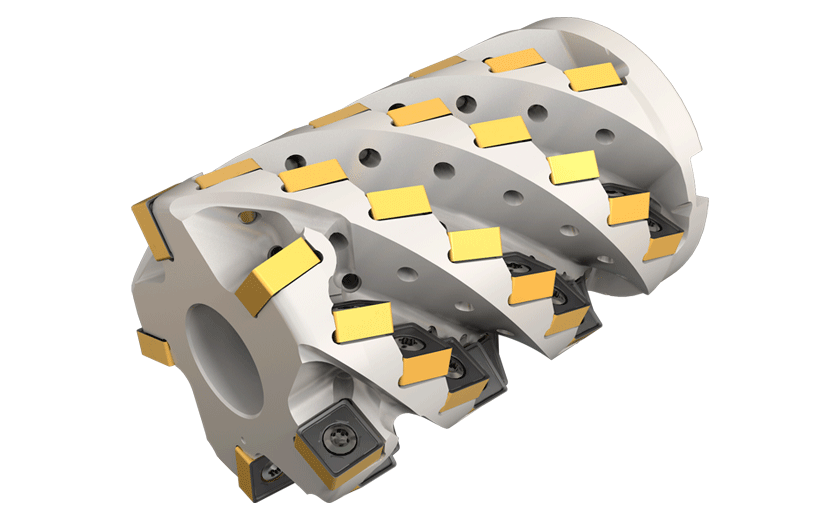

S890 SM D80-83-5-32-13-Extended flute cutters carrying double-sided square inserts with 8 cutting edges

Dostępność: duża ilość

Cena brutto: 18 655,15 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

18655.15

Cena netto: 15 166,79 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 12 900,00 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3380915

S890 SM D80-83-5-32-13

Podstawowe informacje
FamilyName	S890 SM
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3380915
ProductName	S890 SM D80-83-5-32-13
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Extended flute cutters carrying double-sided square inserts with 8 cutting edges
FamilyShortDesc	Extended Flute Cutters Carrying Double-Sided Square Inserts with 8 Cutting Edges
Link	https://www.Iscar.com/ecat/e.asp?cat=3380915
Remarks	When using inserts with a corner radius of above 3.2mm, the pockets in the first row of the tool body should be modified to accommodate larger insert corners. For adaptation, click on More Info.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Shouldering \|
APP1Name	Shouldering
ItemRemark
Tool Type	90° Extended flute shell mill
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	2.5680
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3380915
Arbor Style	A
Connection Diameter Machine Side (DCONMS)	32 mm
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	80 mm
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	40
Depth of Cut Maximum (APMX)	83 mm
Flute Count (NOF)	5
Hub Diameter (DHUB)	78 mm
Master Insert Identification (MIID)	S890 SNMU 130608 PNTN
Overall Length (OAL)	100 mm
