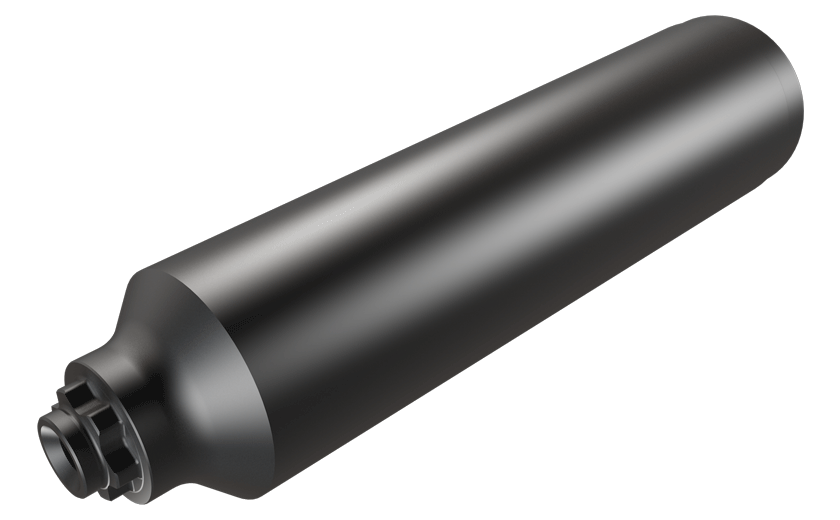

SD FM-S-A-L5.00-W150-SP19-Stepped cylindrical shanks for interchangeable solid carbide face milling heads.

Dostępność: duża ilość

Cena brutto: 955,89 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

955.89

Cena netto: 777,15 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 1 062,10 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3348208

SD FM-S-A-L5.00-W150-SP19

Podstawowe informacje
FamilyName	SD FM-S-A-SP
ToolType	Holder
Unit	I
PackSize	1
product_code	ISC3348208
ProductName	SD FM-S-A-L5.00-W150-SP19
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Stepped cylindrical shanks for interchangeable solid carbide face milling heads.
FamilyShortDesc	Stepped Cylindrical Shanks for Interchangeable Solid Carbide Face Milling Heads
Link	https://www.Iscar.com/ecat/e.asp?cat=3348208
Remarks	Apply lubricant to the clamping screw
FamilyBrand	Iscar
BrandName	Iscar
ItemRemark
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	2.5904
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3348208
Body Length (LB)	0.551"
Connection Code Machine Side (CCMS)	Weldon
Connection Diameter Machine Side (DCONMS)	1-1/2"
Connection Thread Nominal Size Workpiece Side (THSZWS)	M6x0.5
Functional Length (LF)	4.148"
Overall Length (OAL)	5.335"
