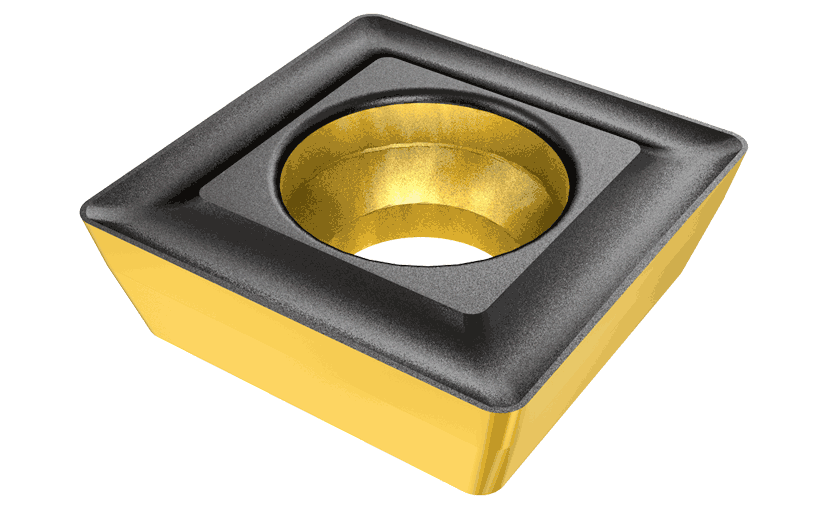

SOGT 100408-W IC808-Precision ground inserts with DT general use chipformer and a wiper for MNC drills, for general applications

Dostępność: duża ilość

Cena brutto: 129,85 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

129.85

Cena netto: 105,57 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 104,49 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 5510345

SOGT 100408-W IC808

Podstawowe informacje
FamilyName	SOGT-W
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC5510345
ProductName	SOGT 100408-W IC808
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Precision ground inserts with DT general use chipformer and a wiper for MNC drills, for general applications
FamilyShortDesc	Precision Ground Inserts with DT General Use Chipformer and a Wiper for MNC Drills
Link	https://www.Iscar.com/ecat/e.asp?cat=5510345
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drilling \|
APP1Name	Drilling
ItemRemark
Coating	TiAlN+AlTiN+TiN
Cutting Edge Material	Carbide
Tool Type	Indexable drilling inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0049
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	5510345
Grade	IC808
Corner Radius (RE)	0.8 mm
Cutting Direction (HAND)	Neutral
Inscribed Circle Diameter (IC)	9.8 mm
Insert Included Angle (EPSR)	0 Degrees
Insert Thickness (S)	4.3 mm
