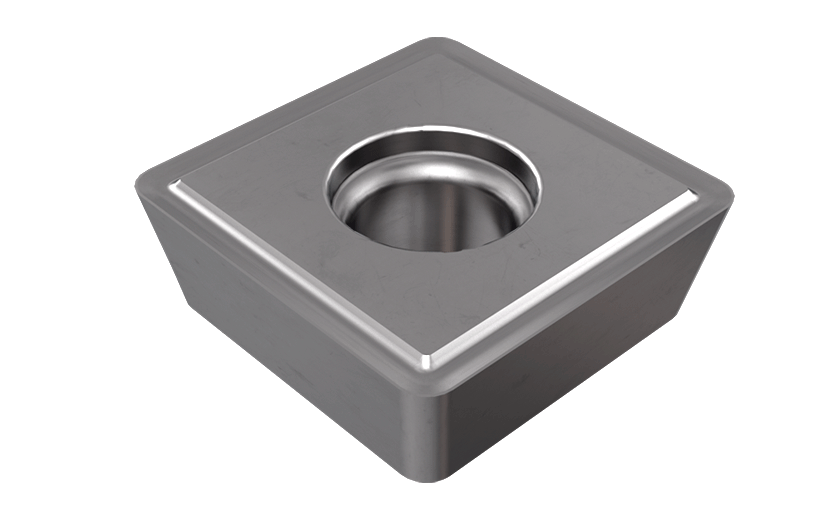

SOMX 050204-DT IC808-Inserts for DR drills with a DT chipformer for medium-to-high feeds general use applications.

Dostępność: duża ilość

Cena brutto: 81,32 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

81.32

Cena netto: 66,11 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 65,36 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 5507879

SOMX 050204-DT IC808

Podstawowe informacje
FamilyName	SOMX-DT
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC5507879
ProductName	SOMX 050204-DT IC808
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Inserts for DR drills with a DT chipformer for medium-to-high feeds general use applications.
FamilyShortDesc	Inserts for DR Drills with a DT General Use Chipformer
Link	https://www.Iscar.com/ecat/e.asp?cat=5507879
Remarks	DT - a general use chipformer for medium to high feed rates
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drill Mill \| Drilling \|
APP1Name	Drill Mill
APP2Name	Drilling
ItemRemark
Coating	TiAlN+AlTiN+TiN
Cutting Edge Material	Carbide
Tool Type	Indexable drilling inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0020
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	5507879
Grade	IC808
Corner Radius (RE)	0.35 mm
Inscribed Circle Diameter (IC)	5.4 mm
Insert Thickness (S)	2.4 mm
