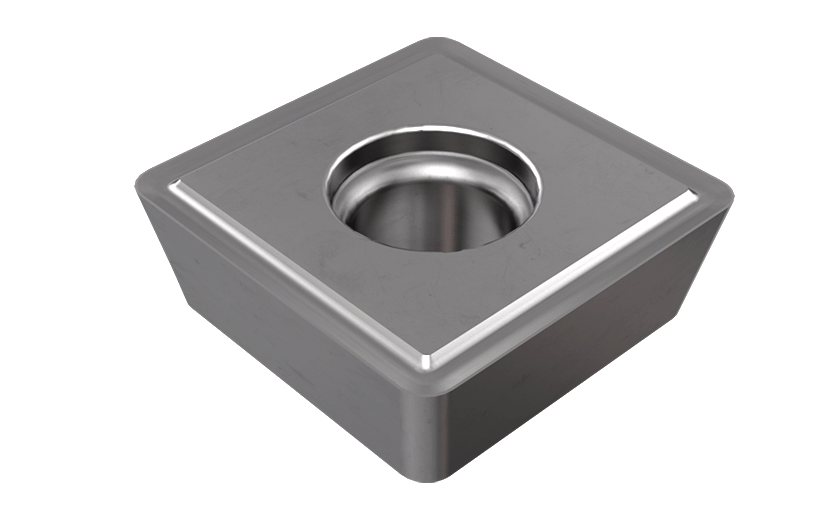

SOMX 060304-DT IC1008-Inserts for DR drills with a DT chipformer for medium-to-high feeds general use applications.

Dostępność: duża ilość

Cena brutto: 80,33 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

80.33

Cena netto: 65,31 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 64,50 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 5507494

SOMX 060304-DT IC1008

Podstawowe informacje
FamilyName	SOMX-DT
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC5507494
ProductName	SOMX 060304-DT IC1008
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Inserts for DR drills with a DT chipformer for medium-to-high feeds general use applications.
FamilyShortDesc	Inserts for DR Drills with a DT General Use Chipformer
Link	https://www.Iscar.com/ecat/e.asp?cat=5507494
Remarks	DT - a general use chipformer for medium to high feed rates
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Drill Mill \| Drilling \|
APP1Name	Drill Mill
APP2Name	Drilling
ItemRemark
Coating	TiAlN+TiN
Cutting Edge Material	Carbide
Tool Type	Indexable drilling inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Aluminum / Non-Ferrous Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0019
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	5507494
Grade	IC1008
Corner Radius (RE)	0.4 mm
Inscribed Circle Diameter (IC)	6.2 mm
Insert Thickness (S)	3.2 mm
