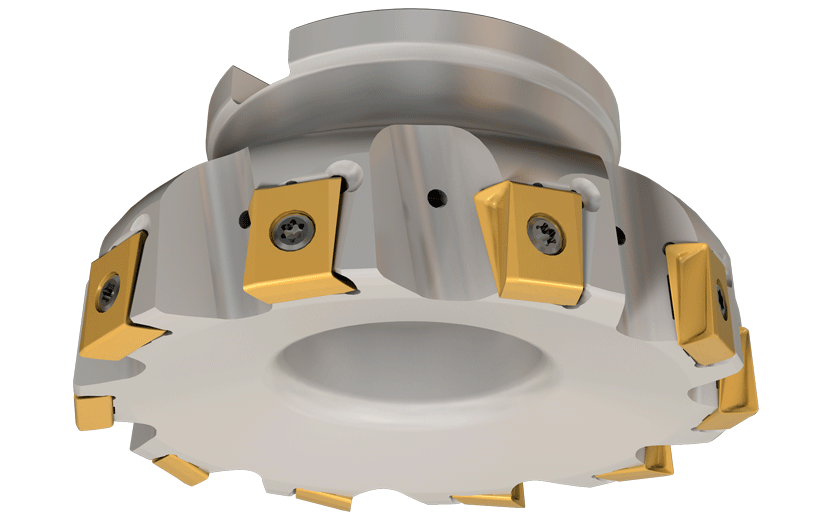

» T490 FLN D3.0-05-1.0-16-HELITANG T490 Line, 90° face mills carrying T490 LNMT 16... tangentially clamped inserts with 4 long (.630") helical cutting edges

T490 FLN D3.0-05-1.0-16-HELITANG T490 Line, 90° face mills carrying T490 LNMT 16... tangentially clamped inserts with 4 long (.630") helical cutting edges

Dostępność: duża ilość

Cena brutto: 4 759,45 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

4759.45

Cena netto: 3 869,47 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 293,80 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3104886

T490 FLN D3.0-05-1.0-16

Podstawowe informacje
FamilyName	T490 FLN-16
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3104886
ProductName	T490 FLN D3.0-05-1.0-16
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	HELITANG T490 Line, 90° face mills carrying T490 LNMT 16... tangentially clamped inserts with 4 long (.630") helical cutting edges
FamilyShortDesc	90° Face Mills Carrying Tangentially Clamped Inserts with 4 Long (.630") Helical Cutting Edges
Link	https://www.Iscar.com/ecat/e.asp?cat=3104886
Remarks	When machining slots, regular pitch cutters should be used.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Shouldering \| Slotting \|
APP1Name	Facing
APP2Name	Shouldering
APP3Name	Slotting
ItemRemark
Tool Type	90° Facemills
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	2.4758
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3104886
Arbor Style	A
Connection Diameter Machine Side (DCONMS)	1"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	3"
Cutting Diameter (DC/DCX)	3"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	5
Depth of Cut Maximum (APMX)	0.63"
Hub Diameter (DHUB)	2.6"
Master Insert Identification (MIID)	T490 LNHT 160708PNR
Overall Length (OAL)	2"
Tool Cutting Edge Angle (KAPR)	90 Degrees
