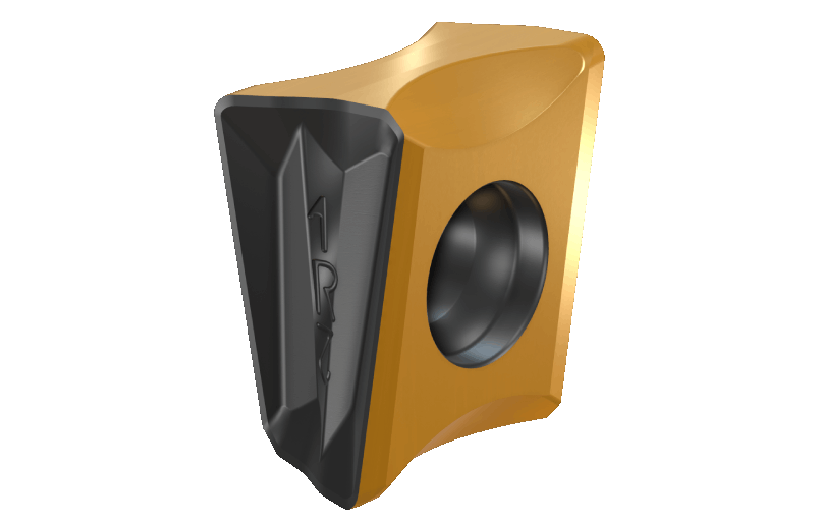

T490 LNHT 1306PNTR-RD IC808-HELITANG - Tangentially clamped inserts with 4 helical cutting edges. The unique pocket design prevents insert pull-out and enables tools with larger core diameters compared with regular radially orientated inserts.
Dostępność:
duża ilość
Cena brutto:
200,41 zł
zawiera 23,00% VAT, bez kosztów dostawy
Cena regularna:
Cena netto:
162,93 zł
bez 23,00% VAT i kosztów dostawy
Cena regularna:
Cena w innych sklepach:
158,24 zł
towar niedostępny
dodaj do przechowalni
Ocena:
0
0
Producent:
Kod produktu:
3421339
Opis
T490 LNHT 1306PNTR-RD IC808
| Podstawowe informacje | |
|---|---|
| FamilyName | T490 LNMT/LNHT/LNAR 1306 |
| ToolType | Insert |
| Unit | M |
| PackSize | 10 |
| product_code | ISC3421339 |
| ProductName | T490 LNHT 1306PNTR-RD IC808 |
| COO | Israel |
| UOM | EA |
| UNSPSC | 23242105 |
| FamilyDesc | HELITANG - Tangentially clamped inserts with 4 helical cutting edges. The unique pocket design prevents insert pull-out and enables tools with larger core diameters compared with regular radially orientated inserts. |
| FamilyShortDesc | Tangentially Clamped Inserts with 4 Helical Cutting Edges |
| Link | https://www.Iscar.com/ecat/e.asp?cat=3421339 |
| Remarks | LNMT-utility inserts, LNHT-precision inserts. |
| FamilyBrand | Iscar |
| BrandName | Iscar |
| Application | | Bottom Shouldering | Facing | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | |
| APP1Name | Bottom Shouldering |
| APP2Name | Facing |
| APP3Name | Rampdown |
| APP4Name | Shouldering |
| APP5Name | Side Slotting |
| APP6Name | Slanted Shoulder & Chamfer |
| APP7Name | Slotting |
| ItemRemark | Used for ramping down applications with 32 mm and larger tools |
| Coating | TiAlN+AlTiN+TiN |
| Cutting Edge Material | Carbide |
| Tool Type | Mill Tangential Inserts |
| Point Shape | |
| Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | |
| Package Weight | 0.0112 |
| Style | |
| MSDS | 07999 |
| LocalField1 | 21 |
| Body Material | Carbide |
| ManufacturerNo | 3421339 |
| Grade | IC808 |
| Corner Radius (RE) | 0.85 mm |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 12.5 mm |
| Figure | 1. |
| Insert Length (INSL) | 13.81 mm |
| Insert Included Angle (EPSR) | 90 Degrees |
| Insert Thickness (S) | 13.05 mm |
| Insert Width (W1) | 6.65 mm |
| Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 2.57 mm |
