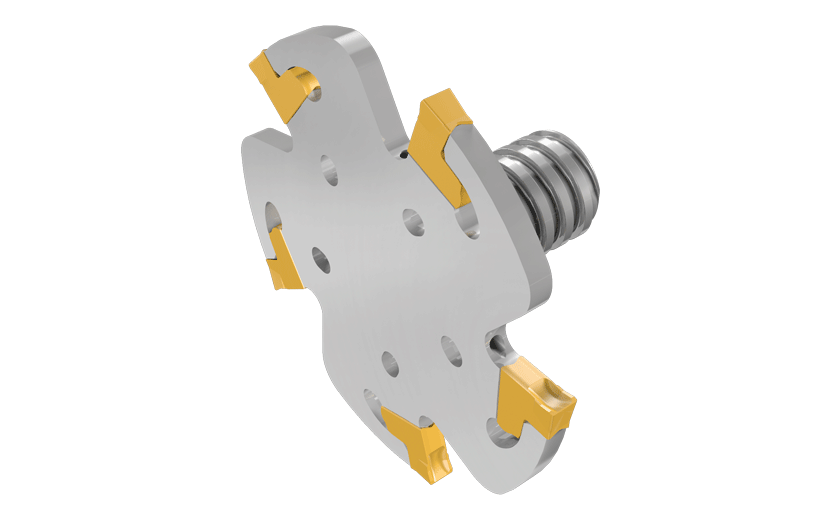

TGSF 50-3-MMT12-5Z-JHP-Grooving and slitting small diameter cutters with MULTI-MASTER threaded adaptor, that mount TANG-GRIP inserts.

Dostępność: duża ilość

Cena brutto: 5 444,60 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

5444.60

Cena netto: 4 426,50 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 3 560,40 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3345231

TGSF 50-3-MMT12-5Z-JHP

Podstawowe informacje
FamilyName	TGSF-MM-JHP
ToolType	Tool
Unit	M
PackSize	1
product_code	ISC3345231
ProductName	TGSF 50-3-MMT12-5Z-JHP
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Grooving and slitting small diameter cutters with MULTI-MASTER threaded adaptor, that mount TANG-GRIP inserts.
FamilyShortDesc	Grooving and Slitting Small Diameter Cutters with MULTI-MASTER Threaded Adaptor
Link	https://www.Iscar.com/ecat/e.asp?cat=3345231
Remarks	For best performance use internal coolant with CH type shanks DC varies slightly due to different chip formers having different lengths For precision operations it is recommended to verify diameter offset before machining For adaptation, click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Side Slotting \| Slitting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Side Slotting
APP3Name	Slitting
ItemRemark
Point Shape
Measurement Type	Metric
Thread Standard
Package Weight	0.0670
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3345231
Connection Code Machine Side (CCMS)	MultiMaster
Connection Diameter Machine Side (DCONMS)	19 mm
Connection Thread Nominal Size Machine Side (THSZMS)	T12
Cutting Diameter (DC)	50 mm
Cutting Depth Maximum (CDX)	14 mm
Cutting Item Count (CICT)	5
Cutting Width (CW)	3 mm
Drive Size (DRVS)	16 mm
Functional Length (LF)	11.5 mm
Master Insert Identification (MIID)	TAG N3
Overall Length (OAL)	24.7 mm
