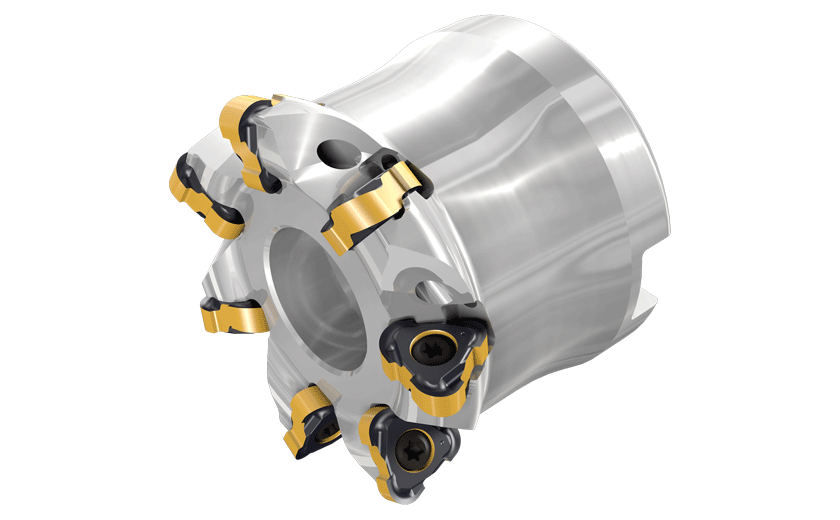

TR6 FR D1.50-06-0.50-10-Multifunction face mills that carry four different insert geometries.

Dostępność: duża ilość

Cena brutto: 2 066,58 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

2066.58

Cena netto: 1 680,15 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 2 296,20 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3344370

TR6 FR D1.50-06-0.50-10

Podstawowe informacje
FamilyName	TR6 FR
ToolType	Tool
Unit	I
PackSize	1
product_code	ISC3344370
ProductName	TR6 FR D1.50-06-0.50-10
COO	Israel
UOM	EA
UNSPSC	23242106
FamilyDesc	Multifunction face mills that carry four different insert geometries.
FamilyShortDesc	Multifunction Face Mills That Carry Four Different Insert Geometries
Link	https://www.Iscar.com/ecat/e.asp?cat=3344370
Remarks	Note: The dimensions refer to master inserts, for other insert radii and geometries dimensions click on More Info
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Fast Feed Milling \| Profiling \| Shouldering \| Slanted Shoulder & Chamfer \|
APP1Name	Facing
APP2Name	Fast Feed Milling
APP3Name	Profiling
APP4Name	Shouldering
APP5Name	Slanted Shoulder & Chamfer
ItemRemark
Point Shape
Measurement Type	Inch
Thread Standard
Package Weight	0.5688
Style
MSDS	07995
LocalField1	2
Body Material	Steel
ManufacturerNo	3344370
Arbor Style	A
Connection Diameter Machine Side (DCONMS)	1/2"
Coolant Supply Property (CSP)	Coolant Thru
Cutting Diameter (DC)	1.303"
Cutting Diameter (DC/DCX)	1-1/2"
Cutting Diameter Maximum (DCX)	1-1/2"
Cutting Direction (HAND)	Right Hand
Cutting Item Count (CICT)	6
Depth of Cut Maximum (APMX)	0.098"
Hub Diameter (DHUB)	1-1/4"
Master Insert Identification (MIID)	TR6 TNCU 100425
Overall Length (OAL)	1.255"
