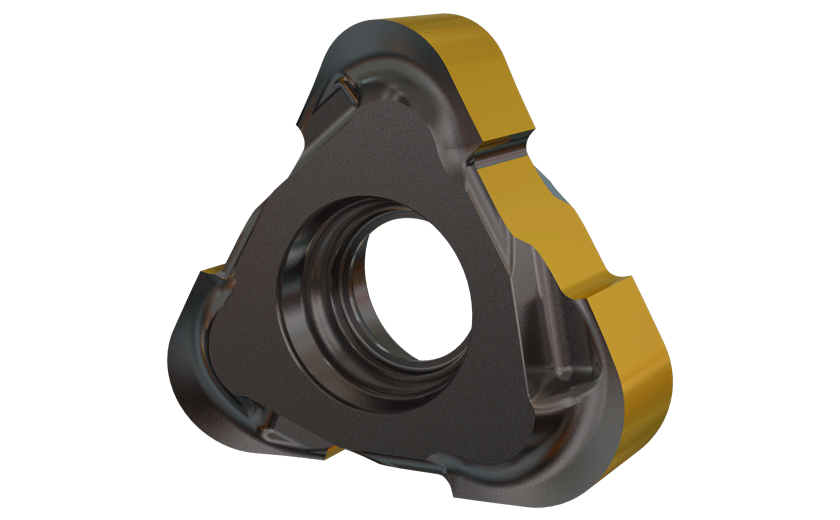

TR6 TNCU 100405 IC808-Double-sided inserts with six round cutting edges, available in 0.5 up to 3.0 mm corner radii.

Dostępność: duża ilość

Cena brutto: 165,24 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

165.24

Cena netto: 134,34 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 126,42 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3320826

TR6 TNCU 100405 IC808

Podstawowe informacje
FamilyName	TR6 TNCU/MU
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3320826
ProductName	TR6 TNCU 100405 IC808
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Double-sided inserts with six round cutting edges, available in 0.5 up to 3.0 mm corner radii.
FamilyShortDesc	Double-Sided Inserts with Six Round Cutting Edges, Available in 0.5 up to 3.0 mm Corner Radii
Link	https://www.Iscar.com/ecat/e.asp?cat=3320826
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Profiling \| Undercutting \|
APP1Name	Facing
APP2Name	Profiling
APP3Name	Undercutting
ItemRemark
Coating	TiAlN+AlTiN+TiN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0040
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3320826
Grade	IC808
Corner Radius (RE)	0.5 mm
Cutting Direction (HAND)	Neutral
Depth of Cut Maximum (APMX)	0.5 mm
Inscribed Circle Diameter (IC)	7.3 mm
Insert Thickness (S)	4.2 mm
Maximum Feed per Tooth (fz(max))	0.3 mm/tooth
Minimum Feed per Tooth (fz(min))	0.1 mm/tooth
