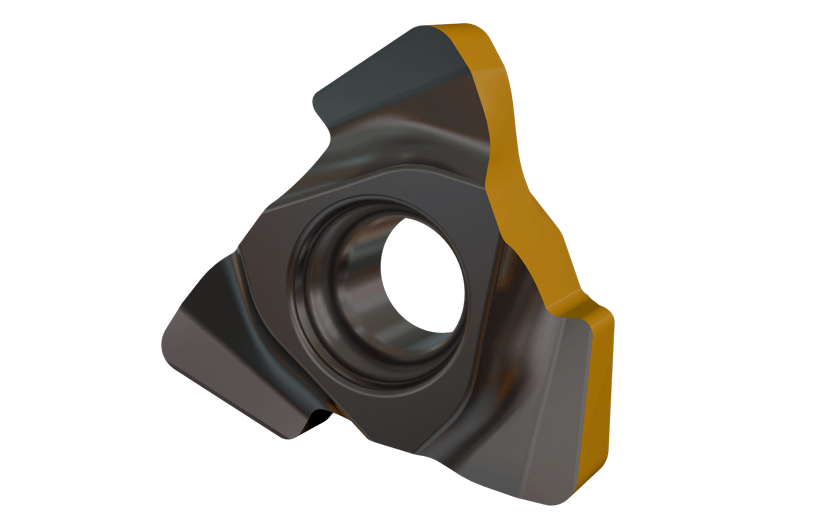

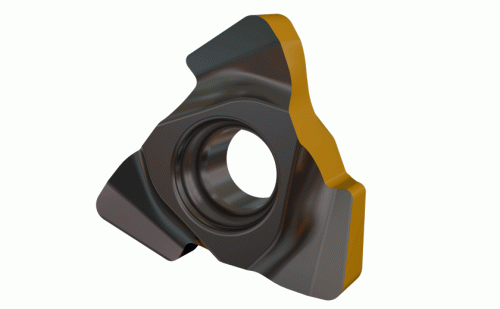

TR90 TXMT 070204 IC808-Single-sided insert with three cutting edges for 90° shoulder and face milling.

Dostępność: duża ilość

Cena brutto: 85,96 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

85.96

Cena netto: 69,89 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 65,79 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3320925

TR90 TXMT 070204 IC808

Podstawowe informacje
FamilyName	TR90 TXMT
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3320925
ProductName	TR90 TXMT 070204 IC808
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Single-sided insert with three cutting edges for 90° shoulder and face milling.
FamilyShortDesc	Single-Sided Insert with Three Cutting Edges for 90° Shoulder and Face Milling
Link	https://www.Iscar.com/ecat/e.asp?cat=3320925
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Facing \| Rampdown \| Shouldering \|
APP1Name	Facing
APP2Name	Rampdown
APP3Name	Shouldering
ItemRemark
Coating	TiAlN+AlTiN+TiN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0020
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3320925
Grade	IC808
Corner Radius (RE)	0.4 mm
Cutting Direction (HAND)	Right Hand
Depth of Cut Maximum (APMX)	2.5 mm
Inscribed Circle Diameter (IC)	5.3 mm
Insert Thickness (S)	2.4 mm
Maximum Feed per Tooth (fz(max))	0.2 mm/tooth
Minimum Feed per Tooth (fz(min))	0.1 mm/tooth
Number of Cutting Edges	3
