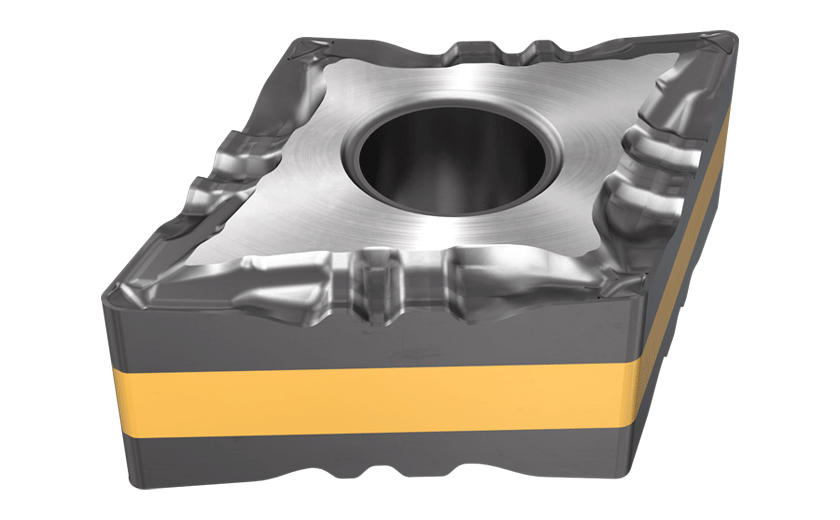

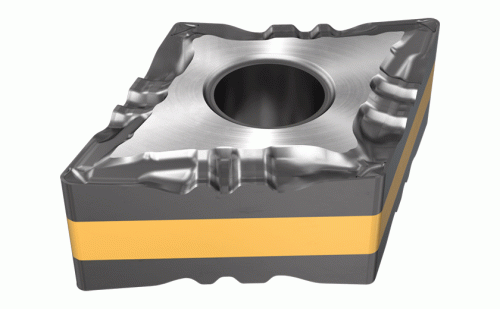

XNMG 120404-F3P IC807-Double-Sided 70° Rhombic Inserts for Semi-Finishing and Finishing Applications

Dostępność: duża ilość

Cena brutto: 46,44 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

46.44

Cena netto: 37,76 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 51,60 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3396420

XNMG 120404-F3P IC807

Podstawowe informacje
FamilyName	XNMG-F3P
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3396420
ProductName	XNMG 120404-F3P IC807
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Double-Sided 70° Rhombic Inserts for Semi-Finishing and Finishing Applications
FamilyShortDesc	Double-Sided 70° Rhombic Inserts for Semi-Finishing and Finishing Applications
Link	https://www.Iscar.com/ecat/e.asp?cat=3396420
Remarks	For dimensions and tolerances, see more info.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. 70° Diamond 93° Approach \|
APP1Name	Ext. 70° Diamond 93° Approach
ItemRemark
Coating	TiAlN+TiN
Cutting Edge Material	Carbide
Tool Type	Turn Negative Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0131
Style
MSDS	07999
LocalField1	21
Body Material	Carbide
ManufacturerNo	3396420
Grade	IC807
Chip Breaker Type	F3P
Corner Radius (RE)	0.4 mm
Cutting Edge Length (L)	13.52 mm
Depth of Cut Maximum (APMX)	3.5 mm
Inscribed Circle Diameter (IC)	12.7 mm
Insert Thickness (S)	4.76 mm
Insert Size	431-F3
Max. Turning Feed (ft(max))	0.25 mm/rev
Min D.O.C.	0.5 mm
Min. Turning Feed (ft(min))	0.07 mm/rev
