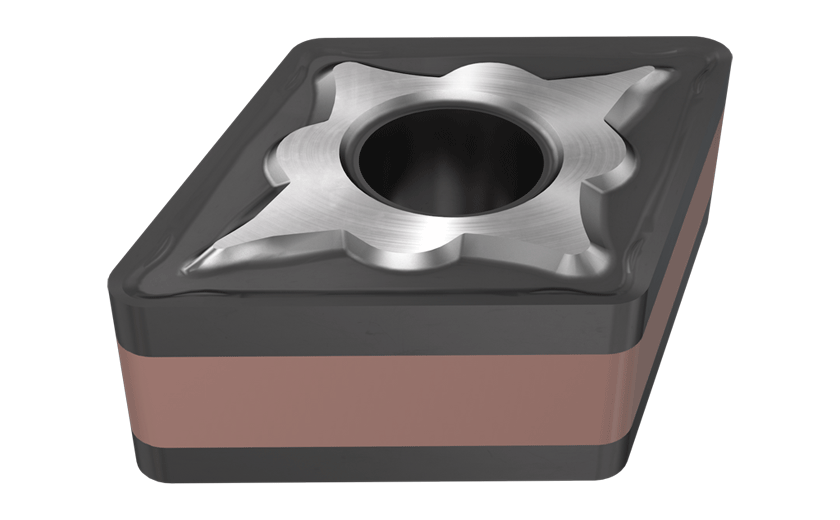

XNMG 120404-M3M IC807-Double-Sided 70° Rhombic Inserts for Machining Stainless and Low Carbon Steel

Dostępność: duża ilość

Cena brutto: 46,44 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

46.44

Cena netto: 37,76 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 51,60 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3396568

XNMG 120404-M3M IC807

Podstawowe informacje
FamilyName	XNMG-M3M
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3396568
ProductName	XNMG 120404-M3M IC807
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Double-Sided 70° Rhombic Inserts for Machining Stainless and Low Carbon Steel
FamilyShortDesc	Double-Sided 70° Rhombic Inserts for Machining Stainless and Low Carbon Steel
Link	https://www.Iscar.com/ecat/e.asp?cat=3396568
Remarks	For dimensions and tolerances, see more info.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. 70° Diamond 93° Approach \|
APP1Name	Ext. 70° Diamond 93° Approach
ItemRemark
Coating	TiAlN+TiN
Cutting Edge Material	Carbide
Tool Type	Turn Negative Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0131
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3396568
Grade	IC807
Chip Breaker Type	M3M
Corner Radius (RE)	0.4 mm
Cutting Edge Length (L)	13.52 mm
Depth of Cut Maximum (APMX)	4 mm
Inscribed Circle Diameter (IC)	12.7 mm
Insert Thickness (S)	4.76 mm
Insert Size	431-M3
Max. Turning Feed (ft(max))	0.4 mm/rev
Min D.O.C.	0.5 mm
Min. Turning Feed (ft(min))	0.1 mm/rev
