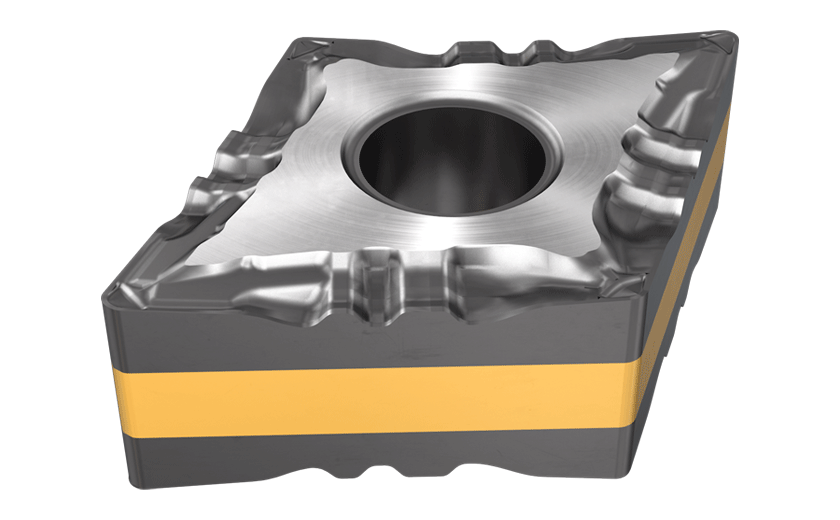

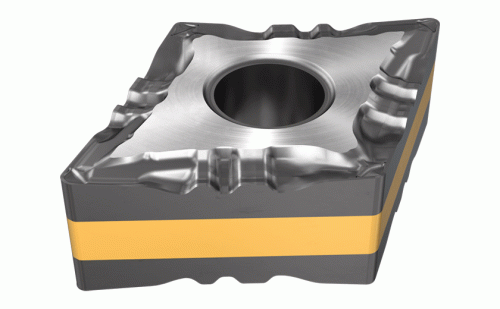

XNMG 120408-M3P IC8250-Double-Sided 70° Rhombic Inserts for Medium Machining Conditions on Steel

Dostępność: duża ilość

Cena brutto: 50,31 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

50.31

Cena netto: 40,90 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 55,90 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3429689

XNMG 120408-M3P IC8250

Podstawowe informacje
FamilyName	XNMG-M3P
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3429689
ProductName	XNMG 120408-M3P IC8250
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Double-Sided 70° Rhombic Inserts for Medium Machining Conditions on Steel
FamilyShortDesc	Double-Sided 70° Rhombic Inserts for Medium Machining Conditions on Steel
Link	https://www.Iscar.com/ecat/e.asp?cat=3429689
Remarks	For dimensions and tolerances, see more info.
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Ext. 70° Diamond 93° Approach \|
APP1Name	Ext. 70° Diamond 93° Approach
ItemRemark
Coating	TiCN+Al2O3+TiN
Cutting Edge Material	Carbide
Tool Type	Turn Negative Inserts
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \|
Thread Standard
Package Weight	0.0109
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3429689
Grade	IC8250
Chip Breaker Type	M3P
Corner Radius (RE)	0.8 mm
Cutting Edge Length (L)	13.52 mm
Depth of Cut Maximum (APMX)	4 mm
Inscribed Circle Diameter (IC)	12.7 mm
Insert Thickness (S)	4.76 mm
Insert Size	432-M3
Max. Turning Feed (ft(max))	0.4 mm/rev
Min D.O.C.	0.8 mm
Min. Turning Feed (ft(min))	0.1 mm/rev
