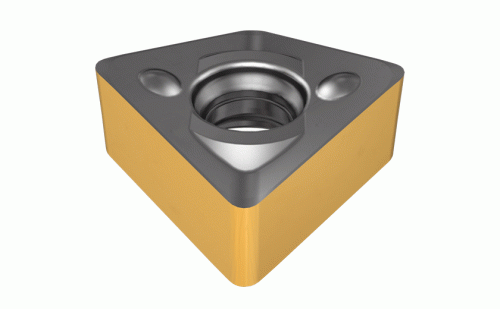

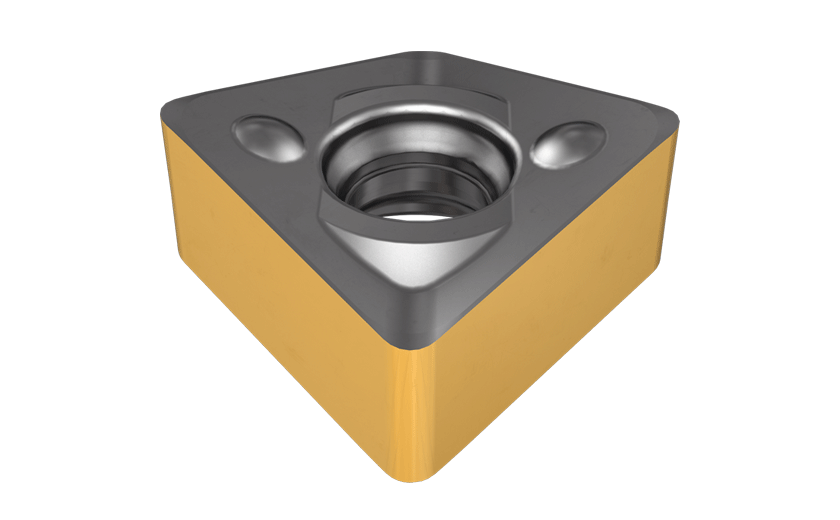

XNMU 090408-PNTN IC5400-Square inserts with 4 right- and 4 left-hand cutting edges.

Dostępność: duża ilość

Cena brutto: 64,63 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

64.63

Cena netto: 52,54 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 71,81 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3343122

XNMU 090408-PNTN IC5400

Podstawowe informacje
FamilyName	XNMU 09
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3343122
ProductName	XNMU 090408-PNTN IC5400
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Square inserts with 4 right- and 4 left-hand cutting edges.
FamilyShortDesc	Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges
Link	https://www.Iscar.com/ecat/e.asp?cat=3343122
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Facing \| Shouldering \| Side Slotting \| Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Bottom Shouldering
APP3Name	Facing
APP4Name	Shouldering
APP5Name	Side Slotting
APP6Name	Slotting
ItemRemark
Coating	TiCN+Al2O3+TiN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \|
Thread Standard
Package Weight	0.0051
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3343122
Grade	IC5400
Corner Radius (RE)	0.8 mm
Cutting Direction (HAND)	Neutral
Cutting Edge Effective Length (LE)	7.5 mm
Depth of Cut Maximum (APMX)	8.2 mm
Insert Included Angle (EPSR)	90 Degrees
Insert Thickness (S)	5.95 mm
Maximum Feed per Tooth (fz(max))	0.15 mm/tooth
Minimum Feed per Tooth (fz(min))	0.05 mm/tooth
Number of Cutting Edges	8
