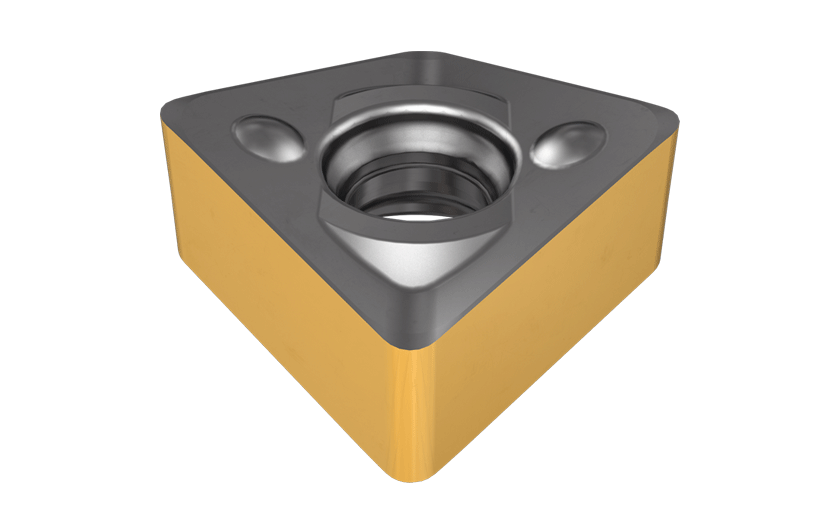

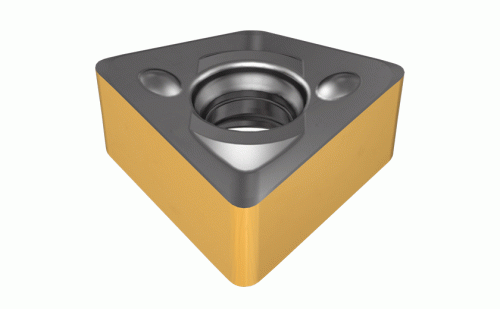

XNMU 090408-PNTN IC808-Square inserts with 4 right- and 4 left-hand cutting edges.

Dostępność: duża ilość

Cena brutto: 94,05 zł

zawiera 23,00% VAT, bez kosztów dostawy

Cena regularna:

94.05

Cena netto: 76,46 zł

bez 23,00% VAT i kosztów dostawy

Cena regularna:

Cena w innych sklepach: 71,81 zł

ilość szt.

towar niedostępny

dodaj do przechowalni

Ocena:

Producent:

Kod produktu: 3343120

XNMU 090408-PNTN IC808

Podstawowe informacje
FamilyName	XNMU 09
ToolType	Insert
Unit	M
PackSize	10
product_code	ISC3343120
ProductName	XNMU 090408-PNTN IC808
COO	Israel
UOM	EA
UNSPSC	23242105
FamilyDesc	Square inserts with 4 right- and 4 left-hand cutting edges.
FamilyShortDesc	Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges
Link	https://www.Iscar.com/ecat/e.asp?cat=3343120
Remarks
FamilyBrand	Iscar
BrandName	Iscar
Application	\| Bottom Shouldering \| Facing \| Shouldering \| Side Slotting \| Slotting \| T Slotting \|
APP1Name	T Slotting
APP2Name	Bottom Shouldering
APP3Name	Facing
APP4Name	Shouldering
APP5Name	Side Slotting
APP6Name	Slotting
ItemRemark
Coating	TiAlN+AlTiN+TiN
Cutting Edge Material	Carbide
Point Shape
Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|
Thread Standard
Package Weight	0.0053
Style
MSDS	07999
LocalField1	2
Body Material	Carbide
ManufacturerNo	3343120
Grade	IC808
Corner Radius (RE)	0.8 mm
Cutting Direction (HAND)	Neutral
Cutting Edge Effective Length (LE)	7.5 mm
Depth of Cut Maximum (APMX)	8.2 mm
Insert Included Angle (EPSR)	90 Degrees
Insert Thickness (S)	5.95 mm
Maximum Feed per Tooth (fz(max))	0.15 mm/tooth
Minimum Feed per Tooth (fz(min))	0.05 mm/tooth
Number of Cutting Edges	8
